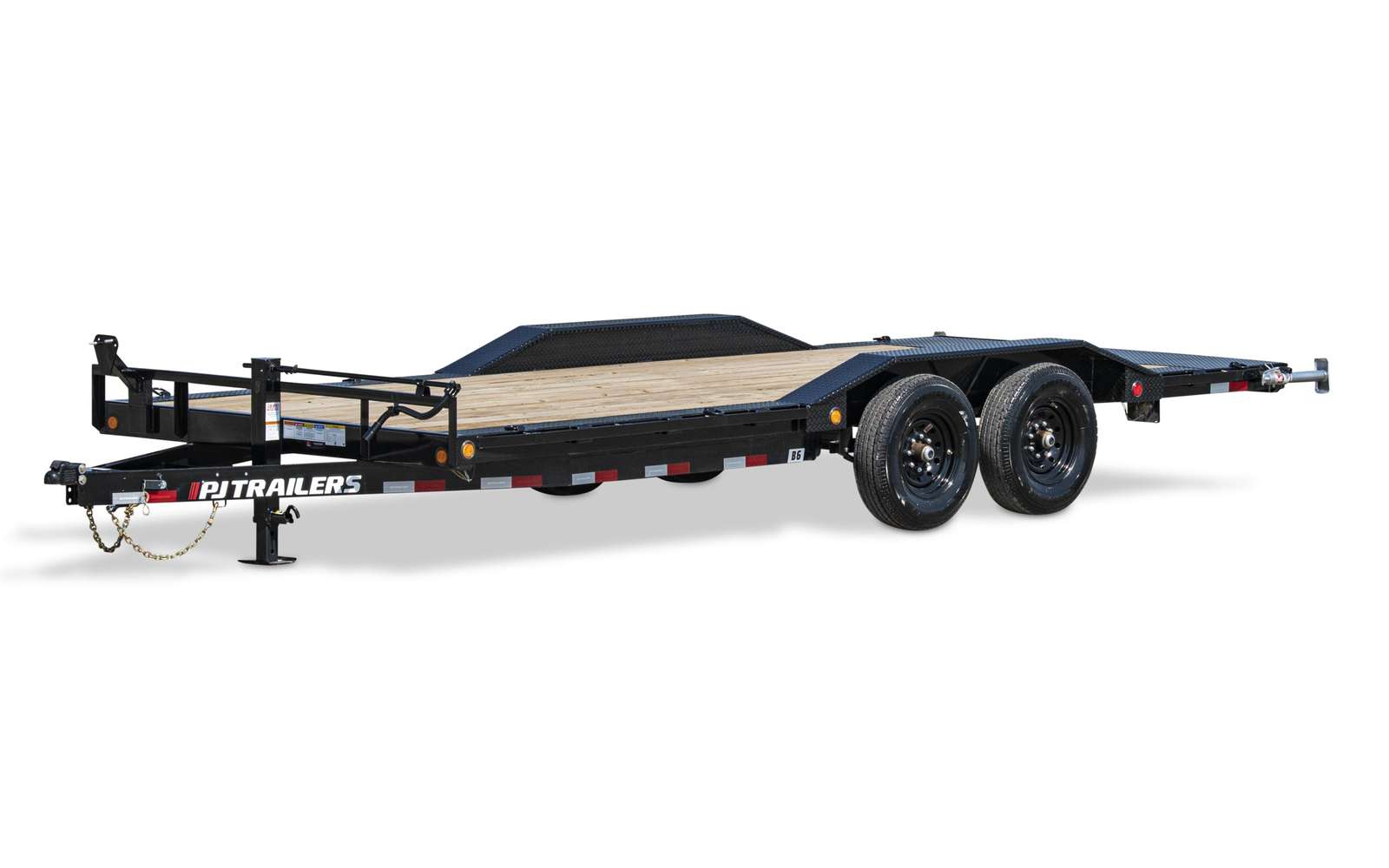

6" Channel Super-Wide (B6)

Available Lengths

  • 16’
  • 18’
  • 20’
  • 22’
  • 24’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 14,000 lb. G.V.W.R.
  • 7,000 lb. x 2 G.A.W.R.
  • Adjustable 2 5/16” Ball Bulldog Coupler
  • Safety Chains
  • 1 - Drop Leg Jack (10,000 lb.)
  • 2 - Dexter E- Z lube Brake Axles (7,000 lb.)
  • 6 Leaf Slipper Spring Suspension
  • 4 - 16” White Spoke Wheels
  • 4 - 235/80R16 Radial Tires (3,520 lb)
  • Electric Breakaway Kit w/ Charger
  • 5’ Channel Ramps w/ Holder
  • Dual Bulldog Rear Support Jacks
  • 6” Channel Frame & Tongue
  • 3” Channel Crossmembers 16” on Center
  • 2” Treated Pine Lumber Deck
  • 102 Wide Deck
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • Fender Rating: 4,000 lbs/ea
  • Rubrail w/Stake Pockets
  • Tool Tray In Tongue
  • DOT Approved Flushmount Lifetime LED Lights
  • GN Option Equipped with 2 Jacks
  • 82 1/2 ” Between the Fenders
  • GN Equipped w/Lockable Front Toolbox
  • 5 year Dexter Axle Warranty

Notes:
***8” I-beam on Goosenecks***
Triple Axle Option Available on 20’ ft and Longer
Trailer is 81” Between the Fenders
Trailer will have 80” Between Fenders with 8k, 7k Hydraulic Disc Brake,Torsion and Drop Axles
*** MAX GVWR 16,500 with 8k Axle Option and 16.5k+ Rated Coupler ***
Bumperpull Tongue Length (4’ 7”)


Estimated Weights

Length Axles Est. Base Weight
22' 2 x 7,000 lbs 3,750 lbs / 1,701 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[J] BP 2 5/16” Adjustable (14,000 lb.)
[B] BP 2 5/16” Adjustable Rigid Mount (25,000 lb.)
[H] GN 2 5/16” Round (30,000 lb.) w/ Toolbox
[L] GN Load-Leveling 2 5/16” Square (30,000 lb.) & Tbx
[P] 3” Pintle Eye - Channel-mount (20,000 lb.)
[Q] GN 2 5/16” Square (30,000 lb.) w/ Toolbox
[R] GN 2 5/16” Round (25,000 lb.) w/ Toolbox
[S] GN 2 5/16” Square (25,000 lb.) w/ Toolbox
[T] HD 2 5/16” Adj.3 Bolt Coupler w/6 hole Chn Bracket

Axle Options

[52BS] (2) 5,200# (Dexter) Electric (Spring)
[72BS] (2) 7,000# (Dexter) Electric (Spring)
[72BT] (2) 7,000# (Dexter) Electric (Torsion)
[72HS] (2) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[73BS] (3) 7,000# (Dexter) Electric (Spring)
[73HS] (3) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[92BS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[92BT] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[93BS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[93HS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[K2HS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles(Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[82BS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[82HS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)

Tail Options

[S] Straight deck w/ 5’ Slide-in Ramps
[A] 2’ Dovetail w/ 5’ Slide-in Ramps
[B] 2’ Dovetail w/ 5’ Fold-up Ramps
[C] Straight deck w/ 5’ Fold-up Ramps
[D] 2’ Dovetail w/ 31x66 HD Fold-up Ramps
[E] 4’ Dovetail w/ 5’ Slide-in Ramps
[F] 4’ Dovetail w/ 5’ Fold-up Ramps
[G] 2’ Dovetail w/ 3 5’ Fold-up Ramps
[H] Straight Deck w/ 4’ Heavy Duty Fold-up Gate
[J] 2’ Dovetail w/ 4’ Heavy Duty Fold-up Gate
[K] 2’ Dovetail w/ Split Heavy Duty Gate
[L] 3.5’ Dovetail w/2 Monster Ramps
[M] 2’ Dovetail w/ 5’ Dbl Hinge Fold-up Ramps
[N] 2’ Dovetail w/ 5’ Rear Slide-in Ramps
[P] 4’ Dovetail w/ 5’ Rear Slide-in Ramps
[R] Straight Deck w/ Rear Slide-in Ramps
[T] Straight deck w/ 31x66 HD Fold-up Ramps
[U] 4’ Dovetail w/ Split Heavy Duty Gate
[V] 4’ Dovetail w/ 31x66 HD Fold-up Ramps
[W] 4’ Dovetail w/ 5’ Dbl Hinge Fold-up Ramps
[X] Straight deck w/ 3 5’ Fold-up Ramps

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[2] Primer + Tractor Green Powder Coat
[3] Primer + White Powder Coat
[4] Primer + Equipment Yellow Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer

Other Options

[-BWFL] Blackwood Classic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-CP08] Upgrade to 8 Hole Channel Adjustable Coupler
[-DL01] 1 Pair of Flushmount D-Rings on Wood Floor
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-EL01] Add 7-Way RV Plug to Rear Bumper
[-GT10] Ramp Gate Transition Lip
[-LT10] Light Bar w/4 Lights
[-OD01] 1 Pair Flushmount D-Rings on Steel Outer Deck
[-RT01] 1 Pair Weld-On Strap Ratchets
[-SEM3] 2 3/8” Pipetop w/Expanded Metal Sides (Removable)
[-ST05] Spare Tire and Mount (BP) 215/75/R17.5
[-TB03] Top Riser Toolbox
[0] Cold Weather Wiring Harness (7-Way RV)
[2] 2nd Jack (Bumper Pull)
[4] Plate for Winch
[6] 6” Taller GN Riser
[7] Douglas Fir Lumber
[8] ¼” DP Steel Floor w/ 4 Flushmount D-Rings & 12”oc
[9] 9,990 G.V.W.R.
[C] 12”oc Crossmembers
[E] Rough Oak Floor
[H] Receiver Hitch
[M] 2 3/8” Pipetop Siderails (Removable)
[P] 11ga(1/8”)DP Steel Floor w/ 4 Flushmount D-Rings & 12”oc
[Q] Front Toolbox (Bumper Pull)
[S] Mount Only for Spare Tire
[T] Spare Tire and Mount (Bumper Pull)
[U] Deck on the Neck (102” Wide 96” Long)
[V] Rear Trailer Support Jacks
[W] Warn M12000 Winch w/Plate & Battery
[X] Bulldog 2-speed Jacks (12,000 lb.)
[Z] 3” X 3” Square Tubing Top Rail (Removable)

Parts Guide

Model Part Description Category Part Number
B6 7,000# Electric / Spring
(Axle Brake 70865E-ST-EZ 95x80)
AXLE 110127
B6 Reflector Tape, Conspicuity R&W BODY 170237
B6 Coupler,14K 2-5/16” Adj. BULLDOG COUPLER 140201
B6 Bracket Weld-on - 3/8” Safety Chain
(gooseneck)
HARDWARE 180411
B6 Bracket Weld-on - 3/8” Safety Chain
(with 8k axles)
HARDWARE 180411
B6 Bracket Weld-on - 3/8” Safety Chain
(bumper pull/with triple axle)
HARDWARE 180411
B6 Bracket Weld-on 5/16” Safety Chain
(bumperpull)
HARDWARE 180410
B6 Jack 12K Dropleg SW GN JACK 140102
B6 Rear Support Jack
(Option)
JACK 140100
B6 Light Kit LED for 6” & 8” Carhauler LIGHTING 170504
B6 Ramp (fold-up) w/Adj. Knee
(Fold-up Ramps)
RAMPS 160244
B6 Ramp 3” Channel 12”x60” C5&C6 Paris
(Slide-in Ramps)
RAMPS 160205
B6 Bolt Equal’r 7/8”x4.75” Slipper 7K SUSPENSION 120119
B6 Bolt, Hanger 9/16x3.5” Slipper 7K SUSPENSION 120118
B6 Equalizer 7K  QRG (12”) SUSPENSION 120216
B6 Hanger Center 7K Slipper SUSPENSION 120115
B6 Hanger Front 7K Slipper SUSPENSION 120116
B6 Hanger Kt Tandem Axle Slipper 52/7k SUSPENSION 120112
B6 Hanger Rear 7K Slipper SUSPENSION 120117
B6 Lock Nut for 7K Eq Bolt 7/8” SUSPENSION 120218
B6 Lock Nut for hanger bolt 9/16” SUSPENSION 120311
B6 Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
B6 U-Bolt Kit 3” Rd. for 5.2-7K SUSPENSION 120301
B6 16” White Spoke Wheels w/ 8 on 6.5”
(7000 lb axle)
TIRES & WHEELS 130303

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
