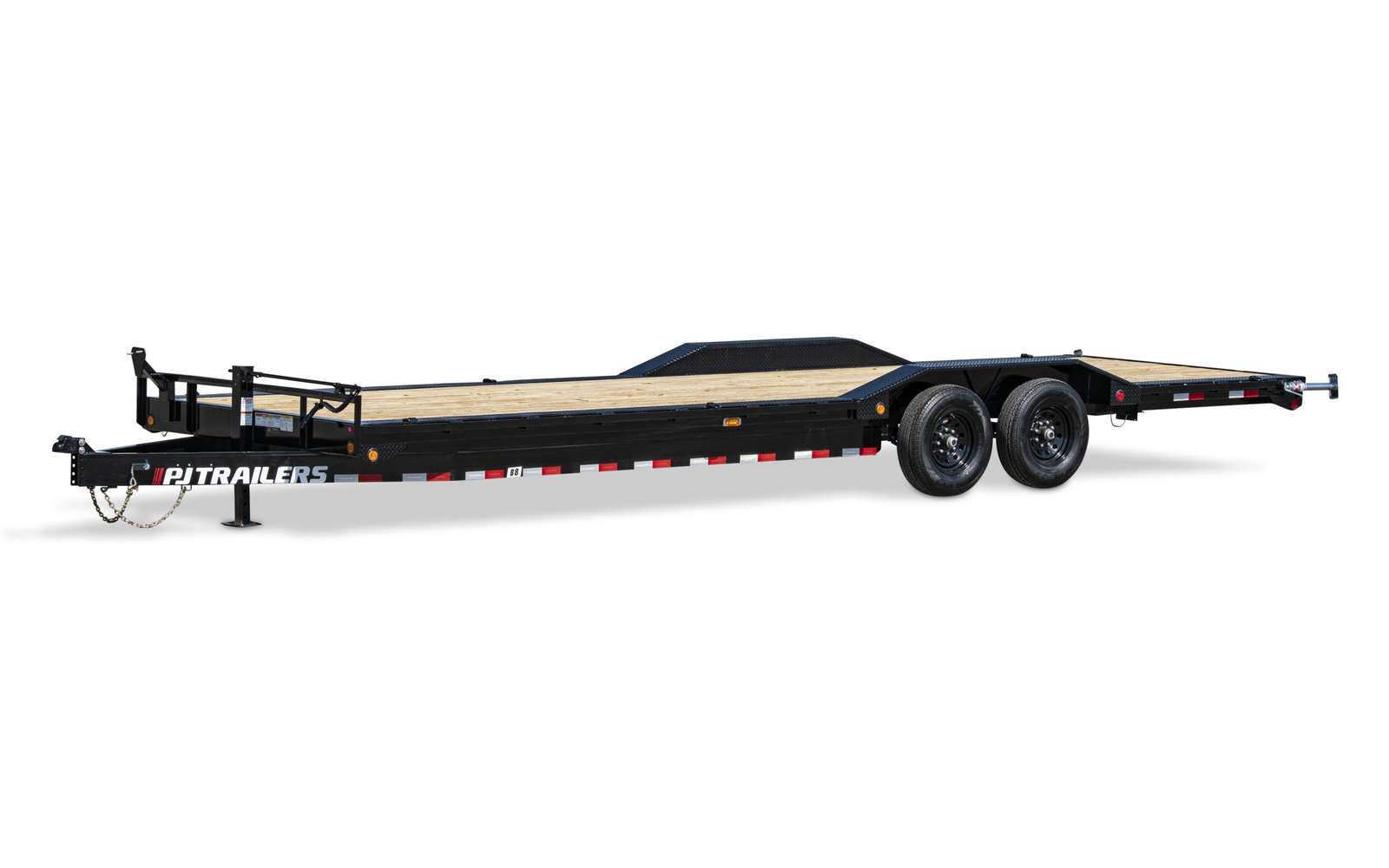

8" Channel Super-Wide (B8)

Available Lengths

  • 16’
  • 18’
  • 20’
  • 22’
  • 24’
  • 26’
  • 28’
  • 30’
  • 32’
  • 34’
  • 36’
  • 38’
  • 40’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 14,000 lb. G.V.W.R.
  • 7,000 lb. x 2 G.A.W.R.
  • Adjustable 2 5/16” Ball Bulldog Coupler
  • Safety Chains
  • 1 - Drop Leg Jack (10,000 lb.)
  • 2 - Dexter E- Z lube Brake Axles (7,000 lb.)
  • 6 Leaf Slipper Spring Suspension
  • 4 - 16” White Spoke Wheels
  • 4 - 235/80R16 Radial Tires (3,520 lb)
  • Electric Breakaway Kit w/ Charger
  • 5’ Channel Ramps w/ Holder
  • Dual Bulldog Rear Support Jacks
  • 8” Channel Frame & Tongue
  • 3” Channel Crossmembers 16” on Center
  • 2” Treated Pine Lumber Deck
  • DOT Approved Flushmount Lifetime LED Lights
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • Rubrail w/Stake Pockets
  • Tool Tray In Tongue
  • 81” Between the Fenders
  • GN Option Equipped with 2 Jacks
  • GN Equipped w/Lockable Front Toolbox
  • 5 year Dexter Axle Warranty

Notes:
*** 24’ and up has 12” I-beam Neck. ***
Trailer will have 80” between fenders with 8k, 7k Hydraulic Disc Brake, Torsion and Drop Axles.
*** MAX GVWR 24,000 with Triple 8k Axles and 24k+ Rated Coupler. ***
Bumper Pull Tongue Length (5’).


Estimated Weights

Length Axles Est. Base Weight
24' 2 x 7,000 lbs 4,680 lbs / 2,123 kg
24' Gooseneck 2 x 7,000 lbs 5,280 lbs / 2,395 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[J] BP 2 5/16” Adjustable (14,000 lb.)
[B] BP 2 5/16” Adjustable Rigid Mount (25,000 lb.)
[H] GN 2 5/16” Round (30,000 lb.) w/ Toolbox
[L] GN Load-Leveling 2 5/16” Square (30,000 lb.) & Tbx
[P] 3” Pintle Eye - Channel-mount (20,000 lb.)
[Q] GN 2 5/16” Square (30,000 lb.) w/ Toolbox
[R] GN 2 5/16” Round (25,000 lb.) w/ Toolbox
[S] GN 2 5/16” Square (25,000 lb.) w/ Toolbox
[T] HD 2 5/16” Adj.3 Bolt Cplr w/6 hole Chn Brkt (25k)

Axle Options

[72BS] (2) 7,000# (Dexter) Electric (Spring)
[72BT] (2) 7,000# (Dexter) Electric (Torsion)
[72GS] (2) 7,000# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[72HS] (2) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[73BS] (3) 7,000# (Dexter) Electric (Spring)
[73HS] (3) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[92BS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[92BT] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[92GS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[92HS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[93BS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[93BT] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[93HS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[B2BS] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires (Dexter) Electric (Spring)
[K2BS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles(Dexter) Electric (Spring)
[82BS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[82BT] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[82HS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[83BS] (3) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)

Tail Options

[S] Straight deck w/ 5’ Slide-in Ramps
[A] 2’ Dovetail w/ 5’ Slide-in Ramps
[B] 2’ Dovetail w/ 5’ Fold-up Ramps
[C] Straight deck w/ 5’ Fold-up Ramps
[D] 2’ Dovetail w/ 31x66 HD Fold-up Ramps
[E] 4’ Dovetail w/ 5’ Slide-in Ramps
[F] 4’ Dovetail w/ 5’ Fold-up Ramps
[G] 2’ Dovetail w/ 3 5’ Fold-up Ramps
[H] Straight Deck w/ 4’ Heavy Duty Fold-up Gate
[J] 2 Dovetail w/ 4’ Heavy Duty Fold-up Gate
[L] 3.5’ Dovetail w/2 Monster Ramps
[M] 2’ Dovetail w/ 5’ Dbl Hinge Fold-up Ramps
[N] 2’ Dovetail w/ 5’ Rear Slide-in Ramps
[P] 4’ Dovetail w/ 5’ Rear Slide-in Ramps
[R] Straight Deck w/ Rear Slide-in Ramps
[T] Straight deck w/ 31x66 HD Fold-up Ramps
[V] 4’ Dovetail w/ 31x66 HD Fold-up Ramps
[W] 4’ Dovetail w/ 5’ Dbl Hinge Fold-up Ramps
[X] Straight deck w/ 3 5’ Fold-up Ramps

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[2] Primer + Tractor Green Powder Coat
[3] Primer + White Powder Coat
[4] Primer + Equipment Yellow Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer

Other Options

[-BWFL] Blackwood Classsic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-CP08] Upgrade to 8 Hole Channel Adjustable Coupler
[-DL01] 1 Pair of Flushmount D-Rings on Wood Floor
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-JA06] 2 Hydraulic Monster Jacks™
[-OD01] 1 Pair Flushmount D-Rings on Steel Outer Deck
[-SM02] 2 Extra Side Marker Lights, 1 Per Side
[-ST05] Spare Tire and Mount (BP) 215/75/R17.5
[-TB03] Top Riser Toolbox
[0] Cold Weather Wiring Harness (7-way RV)
[2] 2nd Jack (Bumper Pull)
[4] Plate for Winch
[6] 6” Taller GN Riser
[7] Douglas Fir Lumber
[8] ¼” DP Steel Floor w/ 4 Flushmount D-Rings & 12”oc
[C] 12”oc Crossmembers
[E] Rough Oak Floor
[H] Receiver Hitch
[M] 2 3/8” Pipetop Siderails (Removable)
[P] 11ga(1/8”) DP Steel Floor w/4 Flushmount D-Rings & 12”oc
[Q] Front Toolbox (Bumper Pull)
[S] Mount Only for Spare Tire
[T] Spare Tire and Mount (Bumper Pull)
[U] Deck on the Neck (102” Wide 96” Long)
[V] Rear Trailer Support Jacks
[W] Warn M12000 Winch w/Plate & Battery
[X] Bulldog 2-speed Jacks (12,000 lb.)

Parts Guide

Model Part Description Category Part Number
B8 7,000# Electric / Spring
(Axle Brake 70865E-ST-EZ 95x80)
AXLE 110127
B8 Reflector Tape, Conspicuity R&W BODY 170237
B8 Coupler,14K 2-5/16” Adj. BULLDOG COUPLER 140201
B8 Bracket Weld-on - 3/8” Safety Chain
(gooseneck)
HARDWARE 180411
B8 Bracket Weld-on - 3/8” Safety Chain
(with 8k axles)
HARDWARE 180411
B8 Bracket Weld-on - 3/8” Safety Chain
(bumper pull/with triple axle)
HARDWARE 180411
B8 Bracket Weld-on 5/16” Safety Chain
(bumperpull)
HARDWARE 180410
B8 Jack 12K Dropleg SW GN JACK 140102
B8 Rear Support Jack
(Option)
JACK 140100
B8 Light Kit LED for 6” & 8” Carhauler LIGHTING 170504
B8 Ramp (fold-up) w/Adj. Knee
(Fold-up Ramps)
RAMPS 160244
B8 Ramp 3” Channel 12”x60” C5&C6 Paris
(Slide-in Ramps)
RAMPS 160205
B8 Bolt Equal’r 7/8”x4.75” Slipper 7K SUSPENSION 120119
B8 Bolt, Hanger 9/16x3.5” Slipper 7K SUSPENSION 120118
B8 Equalizer 7K  QRG (12”) SUSPENSION 120216
B8 Hanger Center 7K Slipper SUSPENSION 120115
B8 Hanger Front 7K Slipper SUSPENSION 120116
B8 Hanger Kit Triple Axle Slipper 7K SUSPENSION 120113
B8 Hanger Kt Tandem Axle Slipper 52/7k SUSPENSION 120112
B8 Hanger Rear 7K Slipper SUSPENSION 120117
B8 Lock Nut for 7K Eq Bolt 7/8” SUSPENSION 120218
B8 Lock Nut for hanger bolt 9/16” SUSPENSION 120311
B8 Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
B8 U-Bolt Kit 3” Rd. for 5.2-7K SUSPENSION 120301
B8 16” White Spoke Wheels w/ 8 on 6.5”
(7000 lb axle)
TIRES & WHEELS 130303

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
