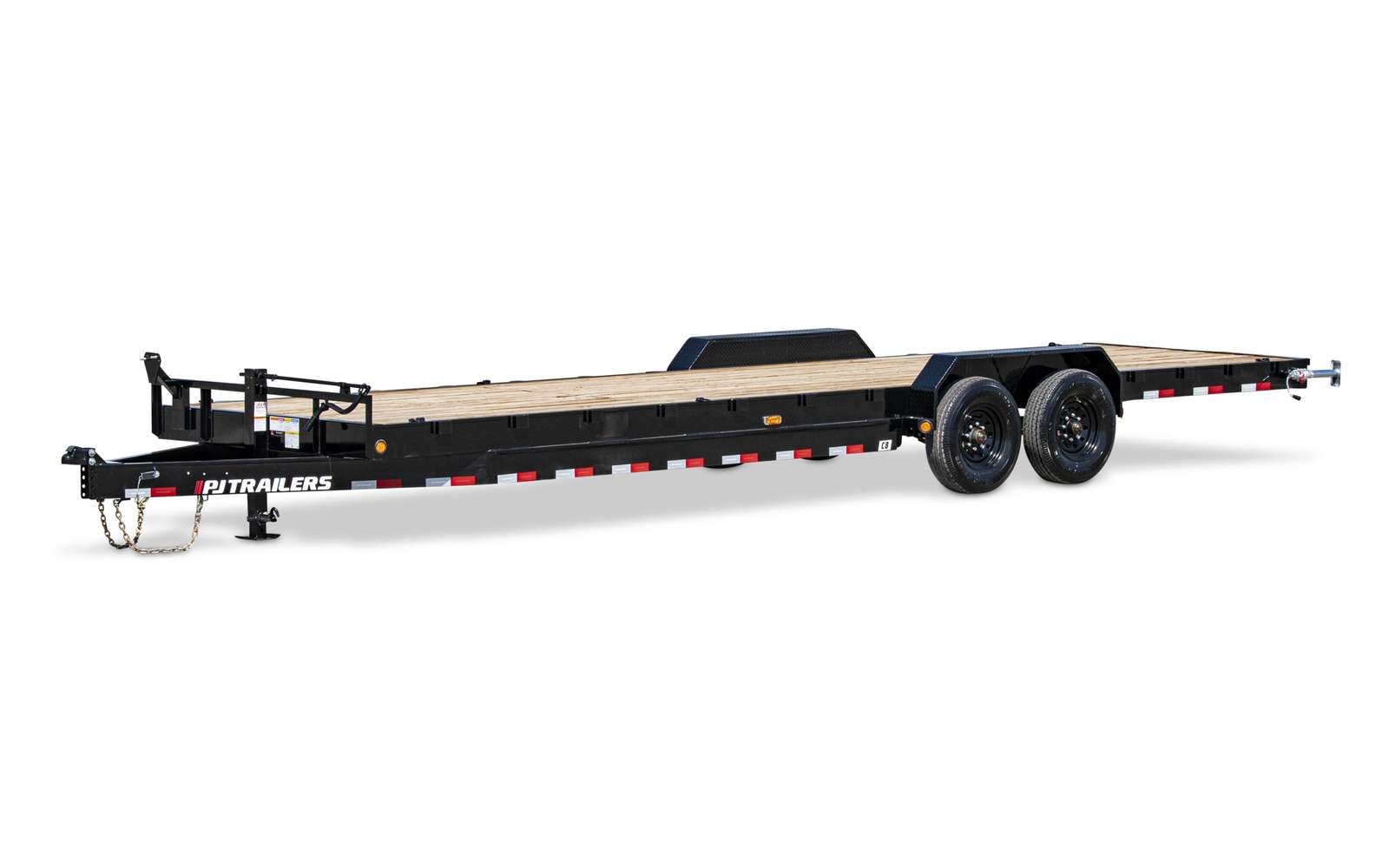

8" Channel Equipment (C8)

Available Lengths

  • 16’
  • 18’
  • 20’
  • 22’
  • 24’
  • 26’
  • 28’
  • 30’
  • 32’
  • 34’
  • 36’
  • 38’
  • 40’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 14,000 lb. G.V.W.R.
  • 7,000 lb. x 2 G.A.W.R.
  • Adjustable 2 5/16” Ball Bulldog Coupler
  • Safety Chains
  • 1 - Drop Leg Jack (10,000 lb.)
  • 2 - Dexter E- Z lube Brake Axles (7,000 lb.)
  • 6 Leaf Slipper Spring Suspension
  • 4 - 16” White Spoke Wheels
  • 4 - 235/80R16 Radial Tires (3,520 lb)
  • Stake Pockets
  • Electric Breakaway Kit w/ Charger
  • 9” x 72” Treadplate Removable Steel Fenders
  • 5’ Channel Ramps w/ Holder
  • Dual Bulldog Rear Support Jacks
  • 8” Channel Frame & Tongue
  • 3” Channel Crossmembers 16” on Center
  • 2” Treated Pine Lumber Deck
  • 83” Wide Deck
  • DOT Approved Flushmount Lifetime LED Lights
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • Tool Tray In Tongue
  • GN Option Equipped with 2 Jacks
  • GN Equipped w/Lockable Front Toolbox
  • 5 year Dexter Axle Warranty

Notes:
*** 24’ and up has 12” I-beam Neck. ***
*** MAX GVWR Rating 24,000 with Triple 8k Axle Option and 24k+ Rated Coupler. ***
Trailer will have 80” Frame with 8k, 7k Hydraulic Disc Brake, Torsion and Drop Axles.
Bumper Pull Tongue Length (4’ 9”), Gooseneck Length ( 8’ 4”).


Estimated Weights

Length Axles Est. Base Weight
20' 2 x 7,000 lbs 3,340 lbs / 1,515 kg
22' 2 x 7,000 lbs 3,530 lbs / 1,601 kg
24' 2 x 7,000 lbs 3,720 lbs / 1,687 kg
26' 2 x 7,000 lbs 3,910 lbs / 1,774 kg
28' 2 x 7,000 lbs 4,100 lbs / 1,860 kg
30' 2 x 7,000 lbs 4,300 lbs / 1,950 kg
32' 2 x 7,000 lbs 4,490 lbs / 2,037 kg
34' 2 x 7,000 lbs 4,680 lbs / 2,123 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[A] BP 2 5/16” Adjustable (14,000 lb.)
[B] BP 2 5/16” Adjustable Rigid Mount (25,000 lb.)
[H] GN 2 5/16” Round (30,000 lb.) w/ Toolbox
[P] 3” Pintle Eye - Channel-mount (20,000 lb.)
[Q] GN 2 5/16” Square (30,000 lb.) w/ Toolbox
[R] GN 2 5/16” Round (25,000 lb.) w/ Toolbox
[S] GN 2 5/16” Square (25,000 lb.) w/ Toolbox

Axle Options

[72BD] (2) 7,000# (Dexter) Electric (Drop Axle)
[72BS] (2) 7,000# (Dexter) Electric (Spring)
[72BT] (2) 7,000# (Dexter) Electric (Torsion)
[72GS] (2) 7,000# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[72HS] (2) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[72HT] (2) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Torsion)
[73BD] (3) 7,000# (Dexter) Electric (Drop Axle)
[73BS] (3) 7,000# (Dexter) Electric (Spring)
[73BT] (3) 7,000# (Dexter) Electric (Torsion)
[73GS] (3) 7,000# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[73HT] (3) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Torsion)
[92BS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[92BT] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[92GS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[92HS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[93BS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[93BT] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[93HS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[B2BS] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires (Dexter) Electric (Spring)
[82BS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[82BT] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[82HS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[83BS] (3) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)

Tail Options

[S] Straight deck w/ 5’ Slide-in Ramps
[5] 3.5’ Dovetail w/2 Monster Ramps
[A] 2’ Dovetail w/ 5’ Slide-in Ramps
[B] 2’ Dovetail w/ 5’ Fold-up Ramps
[C] Straight deck w/ 5’ Fold-up Ramps
[D] 2’ Dovetail w/31x66 HD Fold-up Ramps
[E] 4’ Dovetail w/ 5’ Slide-in Ramps
[F] 4’ Dovetail w/ 5’ Fold-up Ramps
[G] 2’ Dovetail w/ 3 5’ Fold-up Ramps
[K] 2’ Dovetaill w/ Split Heavy Duty Gate
[M] 2’ Dovetail w/ 5’ Dbl Hinge Fold-up Ramps
[N] 2’ Dovetail w/ 5’ with Rear Slide-in Ramps
[P] 4’ Dovetail w/ 5’ with Rear Slide-in Ramps
[T] Straight deck w/ 5’ Rear Slide-in Ramps

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[2] Primer + Tractor Green Powder Coat
[3] Primer + White Powder Coat
[4] Primer + Equipment Yellow Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer

Other Options

[-BWFL] Blackwood Classic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-DL01] 1 Pair of Flushmount D-Rings on Wood Floor
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-JA06] 2 Hydraulic Monster Jacks™
[-ST05] Spare Tire and Mount (BP) 215/75/R17.5
[-TB03] Top Riser Toolbox
[0] Cold Weather Wiring Harness (7-way RV)
[2] 2nd Jack (Bumper Pull)
[4] Plate for Winch
[6] 6” Taller GN Riser
[7] Douglas Fir Lumber
[8] ¼” DP Steel Floor w/ 4 Flushmount D-Rings & 12”oc
[9] 9,990 G.V.W.R.
[B] Rubrail
[C] 12”oc Crossmembers
[E] Rough Oak Floor
[H] Receiver Hitch
[M] 2 3/8” Pipetop on Siderails (Removable)
[N] Diamond Plate Running Boards
[P] 11ga(1/8”) DP Steel Floor w/4 Flushmount D-Rings & 12”oc
[Q] Front Toolbox (Bumper Pull)
[R] 102” Deck Width
[S] Mount Only for Spare Tire
[T] Spare Tire and Mount (Bumper Pull)
[U] Deck on the Neck (102” Wide 96” Long)
[V] Rear Trailer Support Jacks
[W] Warn M12000 Winch w/Plate & Battery
[X] Bulldog 2-speed Jacks (12,000 lb.)
[Y] HD Semi Trailer 2x Jacks (25,000 lb.)
[Z] 3” X 3” Square Tubing Top Rail (Removable)

Parts Guide

Model Part Description Category Part Number
C8 7,000# Electric / Spring
(Axle Brake 70865E-ST-EZ 95x80)
AXLE 110127
C8 Reflector Tape, Conspicuity R&W BODY 170237
C8 Coupler,14K 2-5/16” Adj. BULLDOG COUPLER 140201
C8 Fender Tandem Steel DP C6-C8 Paris FENDER 160611
C8 Bracket Weld-on - 3/8” Safety Chain
(gooseneck)
HARDWARE 180411
C8 Bracket Weld-on - 3/8” Safety Chain
(with 8k axles)
HARDWARE 180411
C8 Bracket Weld-on - 3/8” Safety Chain
(bumper pull/with triple axle)
HARDWARE 180411
C8 Bracket Weld-on 5/16” Safety Chain
(bumperpull)
HARDWARE 180410
C8 Jack 12K Dropleg SW GN JACK 140102
C8 Rear Support Jack
(Option)
JACK 140100
C8 Light Kit LED CC C8 w/Running Brd LIGHTING 170506
C8 Light Kit LED for 6” & 8” Carhauler LIGHTING 170504
C8 Light Pkg - CC C8 w/Running Board
(Incandescent)
LIGHTING 170102
C8 Ramp (fold-up) w/Adj. Knee
(Fold-up Ramps)
RAMPS 160244
C8 Ramp 3” Channel 12”x60” C5&C6 Paris
(Slide-in Ramps)
RAMPS 160205
C8 Bolt Equal’r 7/8”x4.75” Slipper 7K SUSPENSION 120119
C8 Bolt, Hanger 9/16x3.5” Slipper 7K SUSPENSION 120118
C8 Equalizer 7K  QRG (12”) SUSPENSION 120216
C8 Hanger Center 7K Slipper SUSPENSION 120115
C8 Hanger Front 7K Slipper SUSPENSION 120116
C8 Hanger Kit Triple Axle Slipper 7K SUSPENSION 120113
C8 Hanger Kt Tandem Axle Slipper 52/7k SUSPENSION 120112
C8 Hanger Rear 7K Slipper SUSPENSION 120117
C8 Lock Nut for 7K Eq Bolt 7/8” SUSPENSION 120218
C8 Lock Nut for hanger bolt 9/16” SUSPENSION 120311
C8 Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
C8 U-Bolt Kit 3” Rd. for 5.2-7K SUSPENSION 120301
C8 16” White Spoke Wheels w/ 8 on 6.5”
(7000 lb axle)
TIRES & WHEELS 130303

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
