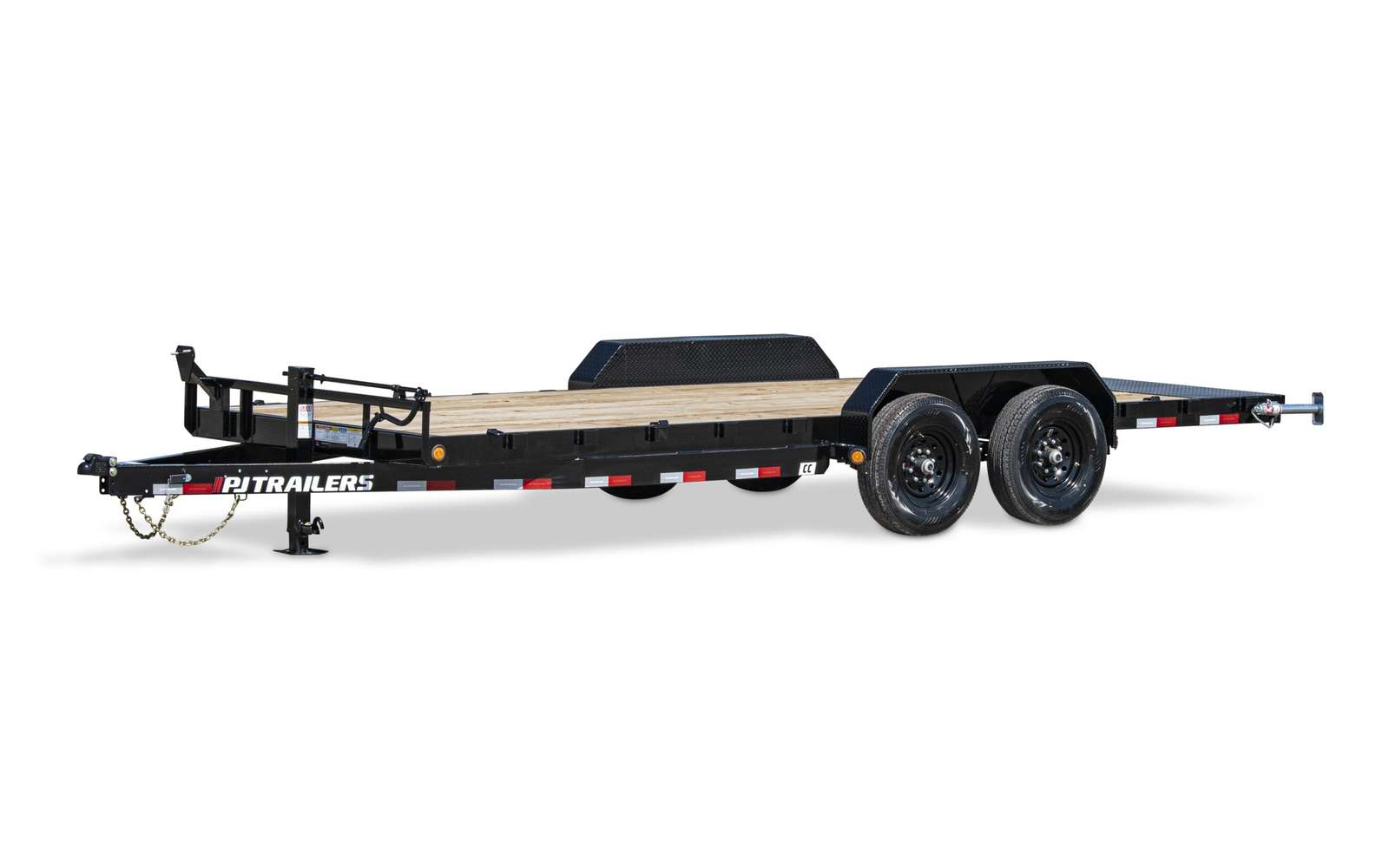

6" Channel Equipment (CC)

Available Lengths

  • 10’
  • 12’
  • 14’
  • 16’
  • 18’
  • 20’
  • 22’
  • 24’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 14,000 lb. G.V.W.R.
  • 7,000 lb. x 2 G.A.W.R.
  • Adjustable 2 5/16” Ball Bulldog Coupler
  • Safety Chains
  • 1 - Drop Leg Jack (10,000 lb.)
  • 2 - Dexter E- Z lube Brake Axles (7,000 lb.)
  • 6 Leaf Slipper Spring Suspension
  • 4 - 16” White Spoke Wheels
  • 4 - 235/80R16 Radial Tires (3,520 lb)
  • Stake Pockets
  • Electric Breakaway Kit w/ Charger
  • 9” x 72” Treadplate Removable Steel Fenders
  • 5’ Channel Ramps w/ Holder
  • Dual Bulldog Rear Support Jacks
  • 6” Channel Frame & Tongue
  • 3” Channel Crossmembers 16” on Center
  • 2” Treated Pine Lumber Deck
  • 83” Wide Deck
  • DOT Approved Flushmount Lifetime LED Lights
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • Tool Tray In Tongue
  • GN Option Equipped with 2 Jacks
  • GN Equipped w/Lockable Front Toolbox
  • 5 year Dexter Axle Warranty

Notes:
*** 8” I-beam on Goosenecks ***
*** MAX GVWR Rating 24,000 with Triple 8k Axle Option and 24k+ Rated Coupler. ***
Trailer will have 80” Frame with 8k, 7k Hydraulic Disc Brake, Torsion and Drop Axles.
Bumper Pull Tongue Length (4’ 7”), Gooseneck Length (8’ 4”).


Estimated Weights

Length Axles Est. Base Weight
16' 2 x 7,000 lbs 2,800 lbs / 1,270 kg
18' 2 x 7,000 lbs 2,950 lbs / 1,338 kg
20' 2 x 7,000 lbs 3,100 lbs / 1,406 kg
22' 2 x 7,000 lbs 3,250 lbs / 1,474 kg
24' 2 x 7,000 lbs 3,400 lbs / 1,542 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[J] BP 2 5/16” Adjustable (14,000 lb.)
[B] BP 2 5/16” Adjustable Rigid Mount (25,000 lb.)
[H] GN 2 5/16” Round (30,000 lb.) w/ Toolbox
[L] GN Load-Leveling 2 5/16” Square (30,000 lb.) & Tbx
[P] 3” Pintle Eye - Channel-mount (20,000 lb.)
[Q] GN 2 5/16” Square (30,000 lb.) w/ Toolbox
[R] GN 2 5/16” Round (25,000 lb.) w/ Toolbox
[S] GN 2 5/16” Square (25,000 lb.) w/ Toolbox
[T] HD 2 5/16” Adj.3 Bolt Cplr w/6 hole Chn Brkt (25k)

Axle Options

[52BS] (2) 5,200# (Dexter) Electric (Spring)
[52BT] (2) 5,200# (Dexter) Electric (Torsion)
[52CS] (2) 5,200# (Dexter) One Electric (Spring)
[52GS] (2) 5,200# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[72BD] (2) 7,000# (Dexter) Electric (Drop Axle)
[72BS] (2) 7,000# (Dexter) Electric (Spring)
[72BT] (2) 7,000# (Dexter) Electric (Torsion)
[72GS] (2) 7,000# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[72HS] (2) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[72HT] (2) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Torsion)
[72SS] (2) 7,000# (Dexter) Surge Hydraulic Drum [Surge Coupler] (Spring)
[73BS] (3) 7,000# (Dexter) Electric (Spring)
[73BT] (3) 7,000# (Dexter) Electric (Torsion)
[73HS] (3) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[92BS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[92BT] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[92GS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[92HS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[93BS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[93BT] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[93HS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[B2BS] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires (Dexter) Electric (Spring)
[B2HS] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[K2BT] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles(Dexter) Electric (Torsion)
[82BS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[82BT] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[83BS] (3) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)

Tail Options

[S] Straight deck w/ 5’ Slide-in Ramps
[5] 3.5’ Dovetail w/2 Monster Ramps
[A] 2’ Dovetail w/ 5’ Slide-in Ramps
[B] 2’ Dovetail w/ 5’ Fold-up Ramps
[C] Straight deck w/ 5’ Fold-up Ramps
[D] 2’ Dovetail w/ 31x66 HD Fold-up Ramps
[E] 4’ Dovetail w/ 5’ Slide-in Ramps
[F] 4’ Dovetail w/ 5’ Fold-up Ramps
[G] 2’ Dovetail w/ 3 5’ Fold-up Ramps
[H] Straight Deck w/ 4’ Heavy Duty Fold-up Gate
[J] 2’ Dovetail w/ 4’ Heavy Duty Fold-up Gate
[K] 2’ Dovetail w/ Split Heavy Duty Gate
[M] 2’ Dovetail w/ 5’ Dbl Hinge Fold-up Ramps
[N] 2’ Dovetail w/ 5’ Rear Slide-in Ramps
[P] 4’ Dovetail w/ 5’ Rear Slide-in Ramps
[R] Straight Deck w/ Rear Slide-in Ramps
[T] Straight deck w/ 31x66 HD Fold-up Ramps
[W] 4’ Dovetail w/ 5’ Dbl Hinge Fold-up Ramps
[X] Straight deck w/ 3 5’ Fold-up Ramps

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[2] Primer + Tractor Green Powder Coat
[3] Primer + White Powder Coat
[4] Primer + Equipment Yellow Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer

Other Options

[-BWFL] Blackwood Classic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-DL01] 1 Pair of Flushmount D-Rings on Wood Floor
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-FR01] Fork Rack
[-JA06] 2 Hydraulic Monster Jacks™
[-RT01] 1 Pair Weld-On Strap Ratchets
[-TB02] Bumper Pull Double Deck Toolbox (Upgrade)
[-TB03] Top Riser Toolbox
[0] Cold Weather Wiring Harness (7-Way RV)
[2] 2nd Jack (Bumper Pull)
[4] Plate for Winch
[6] 6” Taller GN Riser
[7] Douglas Fir Lumber
[B] Rubrail
[C] 12”oc Crossmembers
[E] Rough Oak Floor
[H] Receiver Hitch
[M] 2 3/8” Pipetop on Siderails (Removable)
[N] Diamond Plate Running Boards
[P] 11ga(1/8”) DP Steel Floor w/4 Flushmount D-Rings & 12”oc
[Q] Front Toolbox (Bumper Pull)
[T] Spare Tire and Mount (Bumper Pull)
[U] Deck on the Neck (102” Wide 96” Long)
[V] Rear Trailer Support Jacks
[X] Bulldog 2-speed Jacks (12,000 lb.)
[Z] 3” X 3” Square Tubing Top Rail (Removable)

Parts Guide

Model Part Description Category Part Number
CC 7,000# Electric / Spring
(Axle Brake 70865E-ST-EZ 95x80)
AXLE 110127
CC Bumper Rear Assy - CC BODY 160277
CC Reflector Tape, Conspicuity R&W BODY 170237
CC Coupler,14K 2-5/16” Adj. BULLDOG COUPLER 140201
CC Fender Tandem Steel DP C6-C8 Paris FENDER 160611
CC Bracket Weld-on - 3/8” Safety Chain
(gooseneck)
HARDWARE 180411
CC Bracket Weld-on - 3/8” Safety Chain
(with 8k axles)
HARDWARE 180411
CC Bracket Weld-on - 3/8” Safety Chain
(bumper pull/with triple axle)
HARDWARE 180411
CC Bracket Weld-on 5/16” Safety Chain
(bumperpull)
HARDWARE 180410
CC Jack 12K Dropleg SW GN JACK 140102
CC Rear Support Jack
(Option)
JACK 140100
CC Light Kit LED CC C8 w/Running Brd LIGHTING 170506
CC Light Kit LED for 6” & 8” Carhauler LIGHTING 170504
CC Light Pkg - CC C8 w/Running Board
(Incandescent)
LIGHTING 170102
CC Ramp (fold-up) w/Adj. Knee
(Fold-up Ramps)
RAMPS 160244
CC Ramp 3” Channel 12”x60” C5&C6 Paris
(Slide-in Ramps)
RAMPS 160205
CC Ramprod 34” x 1.5” for UH/CC RAMPS 180181
CC Bolt Equal’r 7/8”x4.75” Slipper 7K SUSPENSION 120119
CC Bolt, Hanger 9/16x3.5” Slipper 7K SUSPENSION 120118
CC Equalizer 7K  QRG (12”) SUSPENSION 120216
CC Hanger Center 7K Slipper SUSPENSION 120115
CC Hanger Front 7K Slipper SUSPENSION 120116
CC Hanger Kit Triple Axle Slipper 7K SUSPENSION 120113
CC Hanger Kt Tandem Axle Slipper 52/7k SUSPENSION 120112
CC Hanger Rear 7K Slipper SUSPENSION 120117
CC Lock Nut for 7K Eq Bolt 7/8” SUSPENSION 120218
CC Lock Nut for hanger bolt 9/16” SUSPENSION 120311
CC Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
CC U-Bolt Kit 3” Rd. for 5.2-7K SUSPENSION 120301
CC 16” White Spoke Wheels w/ 8 on 6.5”
(7000 lb axle)
TIRES & WHEELS 130303

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
