Tandem Dual Dump (DD)

Available Lengths

  • 16’
  • 18’
  • 20’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 25,000 lb. G.V.W.R.
  • 10,000 lb. x 2 G.A.W.R.
  • GN 2 5/16” Ball Bulldog Coupler 25,000 lb
  • Safety Chains
  • 2 - Drop Leg Jacks (10,000 lb.)
  • 2 - Dexter Oil Bath Brake Axles (10,000 lb.)
  • 5 Leaf Slipper Spring Suspension
  • 8 Dual Wheels, 16” Grey, 8 on 6.5” Bolt Pattern
  • 8 Provider 16” 235/80R16 Radial Tires (3,090 lb)
  • Rubrail & Stake Pockets
  • Electric Breakaway Kit w/ Charger
  • DOT Reflective Tape
  • Ladder on Right Side
  • Lockable Front Toolbox w/ Chain Holder
  • 2 - Way Gate (Barn Doors & Spread Gate)
  • 70” Ramps w/ Holders
  • 4 Flushmount D-Rings
  • 45° Dump Pitch
  • 12VDC Hydraulic Pump
  • 10 Ton Scissor Lift
  • 12” x 19 lb. I-Beam Main Frame, Riser & Neck
  • 2 x 6 x 1/8” Square Tubing Outer Deck Frame
  • 3” Channel Crossmembers 16
  • 10ga. Steel Bed
  • 96” Wide Bed
  • 12ga. Steel Sides
  • 36” High Removable Sides
  • DOT Approved Flushmount Lifetime LED Lights
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • Interstate (TM) Deep Cycle Battery
  • 110V Integrated Trickle Charger
  • Dual 5” x 25½” West Craft Hyd. Cylinder w/Hoist
  • 5 year Dexter Axle Warranty

Notes:
16’ 14.22 cu yds
18’ 16.00 cu yds

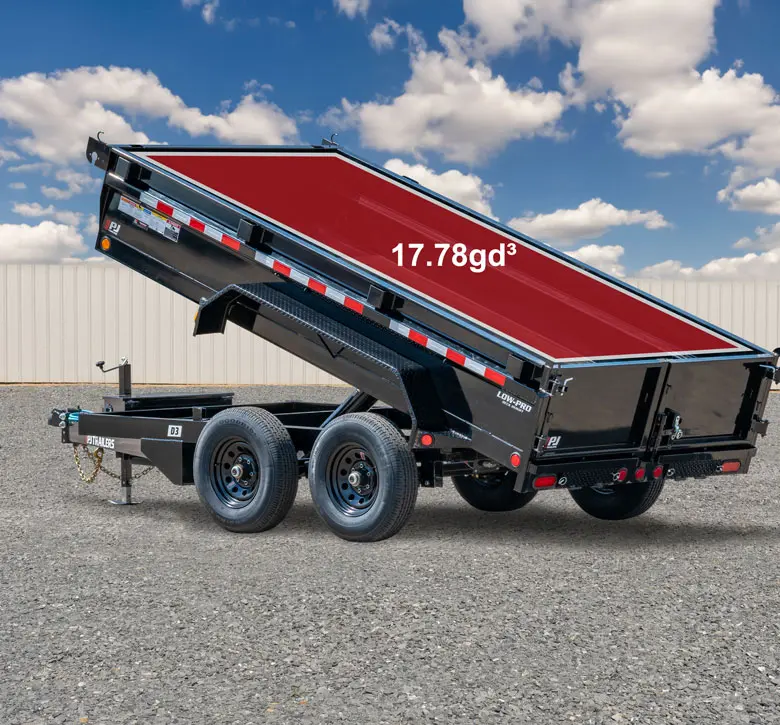

20’ 17.78 cu yds
*** MAX GVWR 28,000 with 12k Axle Option and 28k+ Rated Coupler ***
Gooseneck Length (9’ 1”)


Estimated Weights

Length Axles Est. Base Weight
16' 2 x 10,000 lbs 7,800 lbs / 3,538 kg
18' 2 x 10,000 lbs 8,320 lbs / 3,774 kg
20' 2 x 10,000 lbs 8,840 lbs / 4,010 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[R] GN 2 5/16” Round (25,000 lb.)
[B] BP 2 5/16” Adj Rigid Mount (25,000 lb.) w/Tbx
[E] GN 2 5/16” Round (30,000 lb.) w/ 6” Longer Tube
[H] GN 2 5/16” Round (30,000 lb.)
[L] GN Load-Leveling 2 5/16” Square (30,000 lb.) & Tbx
[P] 3” Pintle Eye - Face-mount (36,000 lb.) w/Tbx
[Q] GN 2 5/16” Square (30,000 lb.)
[S] GN 2 5/16” Square (25,000 lb.)

Axle Options

[S2BS] (2) 10,000# w/235/75R17.5" LR-J Single T&W (Dexter) Electric (Spring)
[S2BT] (2) 10,000# w/235/75R17.5" LR-J Single T&W (Dexter) Electric (Torsion)
[S2HS] (2) 10,000# w/235/75R17.5" LR-J Single T&W (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[A2BS] (2) 10,000# Axles (Dexter) Electric (Spring)
[A2BT] (2) 10,000# Axles (Dexter) Electric (Torsion)
[A2HS] (2) 10,000# Axles (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[T2BS] (2) 10,000# w/235/85R16 LR-G Dual T&W(Dexter) Electric (Spring)
[T2HS] (2) 10,000# w/235/85R16 LR-G Dual T&W(Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[C2BA] (2) 12,000# Axles (Dexter) Electric (Air Ride)
[C2BS] (2) 12,000# Axles (Dexter) Electric (Spring)
[C2HA] (2) 12,000# Axles (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Air Ride)
[C2HS] (2) 12,000# Axles (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[D2BS] (2) 12,000# w/235/85R16 LR-G Dual T&W (Dexter) Electric (Spring)
[D2HS] (2) 12,000# w/235/85R16 LR-G Dual T&W (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)

Tail Options

[S] Split / Spreader Gate
[B] Barn Doors

Parts Guide

Model Part Description Category Part Number
DD 10,000# Electric / Spring
(Axle Elec Brk. Q10GD865E 74x46)
AXLE 110340
DD Reflector Tape, Conspicuity R&W BODY 170237
DD BX1 Coupler, 2-5/16” GN Adj. 25K Round COUPLER 140228
DD Bracket Weld-on - 3/8” Safety Chain HARDWARE 180411
DD Cylinder, 5”x25.5” DD w/Double Cyl. HYDRAULIC 190211
DD Pump Dual Action KTI w/Remote HYDRAULIC 190601
DD Pump Triple  Action KTI w/Remote
(POWER UP/DOWN & GRAVITY DOWN OPTION)
HYDRAULIC 190604
DD Remote Double/Single KTI (new-ROUND) HYDRAULIC 190129
DD Scissor Lift Hoist Less Cyl.for TDD HYDRAULIC 190210
DD Wireless remote KTI (new-ROUND) HYDRAULIC 190101
DD Jack 12K Dropleg SW GN JACK 140102
DD Ramp 3” channel 16”x77” (Dump)slide-in
(April 2014 & Later)
RAMPS 160009
DD Bolt, Equalizer,10k 1” x 6” SUSPENSION 120121
DD Bolt, Spring Eye,10k 3/4”x4-1/2” SUSPENSION 120123
DD Center Hanger - 10K 2.5”-1.75”-1” SUSPENSION 120127
DD Equalizer 10/12K 15 3/4” QRG SUSPENSION 120214
DD Equalizer 10/12K 21 3/4” QRG
(w/6” axle spread, longer equalizer)
SUSPENSION 120215
DD Front hanger - 10K 2.5”-5 3/8”.75” SUSPENSION 120128
DD Hanger Kit Tandem 10-12K Long EQ SUSPENSION 120219
DD Hanger Kit Tandem Axle Slipper 10K SUSPENSION 120114
DD Hanger, Rear for 10/12K SUSPENSION 120129
DD Nut for 10k Equalizer Bolt 1” SUSPENSION 120122
DD Nut for 10k Spring Eye Bolt 3/4” SUSPENSION 120124
DD Spring Slipper 5 leaf 5000# (10K)
(10000 lb axles)
SUSPENSION 120103
DD Spring Slipper 6 leaf ALKO 12K
(12000 lb axles)
SUSPENSION 120105
DD U-Bolt Kit 5” Round 10K
(10000 lb axles)
SUSPENSION 120303
DD U-Bolt Kit 5” Round 12k-16k
(12-16k axles)
SUSPENSION 120310
DD Tarp Kit TDD w/Ground Level Crank TARP 160418
DD 16” Grey Dual Wheels w/ 8 on 6.5” TIRES & WHEELS 130306
DD Tire ST235/80R16 Radial LR-E TIRES & WHEELS 130103
DD Tire&Whl 235/80R16 on Dual TIRES & WHEELS 130210

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
