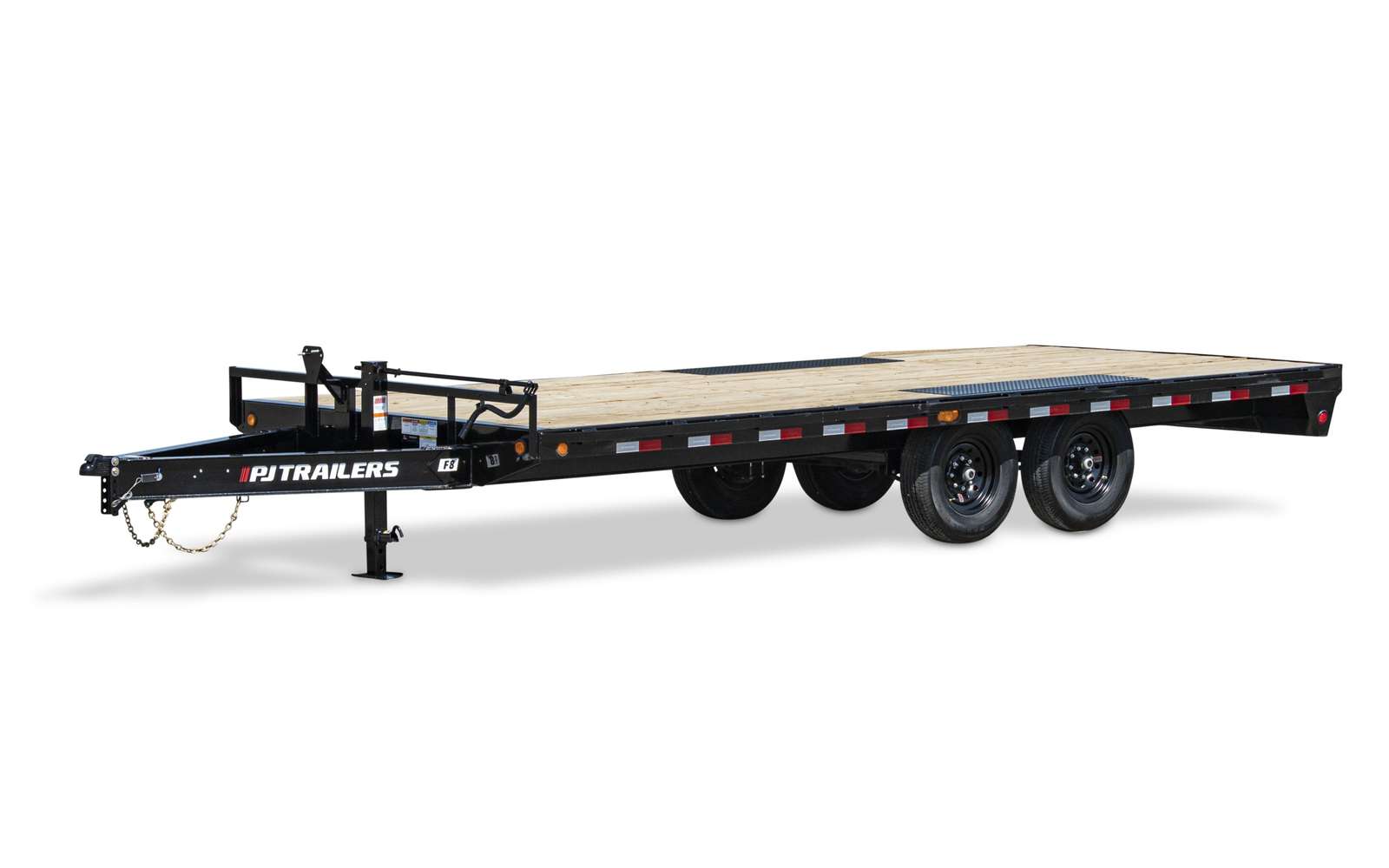

8" I-Beam Deckover (F8)

Available Lengths

  • 16’
  • 18’
  • 20’
  • 22’
  • 24’
  • 26’
  • 27’
  • 28’
  • 30’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 14.,000 lb. G.V.W.R.
  • 7,000 lb. x 2 G.A.W.R.
  • Adjustable 2 5/16” Ball Bulldog Coupler
  • Safety Chains
  • 1 - Drop Leg Jack (10,000 lb.)
  • 2 - Dexter E- Z lube Brake Axles (7,000 lb.)
  • 6 Leaf Slipper Spring Suspension
  • 4 - 16” White Spoke Wheels
  • 4 - 235/80R16 Radial Tires (3,520 lb)
  • Rubrail & Stake Pockets
  • Electric Breakaway Kit w/ Charger
  • DOT Reflective Tape
  • Tool Tray In Tongue
  • 6’ 6” Slide in Ramps w/ Holders
  • 8” x 10 lb. I-Beam Tongue
  • 8” x 10 lb. I-Beam Main Frame
  • 3” Channel Crossmembers 16” on Center
  • 2” Treated Pine Lumber Deck
  • 96” Wide Deck
  • 2 x 6 x 1/8” Square Tubing Outer Deck Frame
  • DOT Approved Flushmount Lifetime LED Lights
  • Amber Side Turn Flashers
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • GN Option Equipped with 2 Jacks
  • GN Equipped with Lockable Front Toolbox
  • GN Equipped with Chain Holder
  • 5 year Dexter Axle Warranty

Notes:
All 5ft. Dovetails or 8k axle options must include 102” wide option (R).
*** 28’ and 30’ need to have Triple Axle Option Added. ***
*** MAX GVWR 24,000 with Triple 8k Axles and 24k+ Rated Coupler. ***
Bumper Pull Tongue Length (6’ 3”).


Estimated Weights

Length Axles Est. Base Weight
16' 2 x 7,000 lbs 3,200 lbs / 1,451 kg
18' 2 x 7,000 lbs 3,400 lbs / 1,542 kg
20' 2 x 7,000 lbs 3,600 lbs / 1,633 kg
20' Gooseneck 2 x 7,000 lbs 4,100 lbs / 1,860 kg
22' 2 x 7,000 lbs 3,820 lbs / 1,733 kg
24' 2 x 7,000 lbs 4,060 lbs / 1,842 kg
26' 2 x 7,000 lbs 4,340 lbs / 1,969 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[J] BP 2 5/16” Adjustable (14,000 lb.)
[B] BP 2 5/16” Adjustable Rigid Mount (25,000 lb.)
[C] Rigid Mount Pintle Eye- Face-mount
[H] GN 2 5/16” Round (30,000 lb.) w/ Toolbox
[L] GN Load-Leveling 2 5/16” Square (30,000 lb.) & Tbx
[P] 3” Pintle Eye - Channel-mount (20,000 lb.)
[Q] GN 2 5/16” Square (30,000 lb.) w/ Toolbox
[R] GN 2 5/16” Round (25,000 lb.) w/ Toolbox
[S] GN 2 5/16” Square (25,000 lb.) w/ Toolbox
[T] HD 2 5/16” Adj. Channel Mount 3 Bolt Coupler (25k)

Axle Options

[52BS] (2) 5,200# (Dexter) Electric (Spring)
[53BS] (3) 5,200# (Dexter) Electric (Spring)
[72BS] (2) 7,000# (Dexter) Electric (Spring)
[72BT] (2) 7,000# (Dexter) Electric (Torsion)
[72GS] (2) 7,000# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[72HS] (2) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[72HT] (2) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Torsion)
[73BS] (3) 7,000# (Dexter) Electric (Spring)
[73BT] (3) 7,000# (Dexter) Electric (Torsion)
[73HS] (3) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[73HT] (3) 7,000# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Torsion)
[92BS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[92BT] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[92HS] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[92HT] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Torsion)
[93BS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[93BT] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[93HS] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[93HT] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Torsion)
[B2BS] (2) 8,000# Oil Bath Axles, 235/80 LR-E Tires (Dexter) Electric (Spring)
[K2BS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles(Dexter) Electric (Spring)
[K2HT] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles(Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Torsion)
[82BS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[82BT] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[82HS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[82SS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Surge Hydraulic Drum [Surge Coupler] (Spring)
[83BS] (3) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)
[83BT] (3) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)

Tail Options

[S] Straight Deck w/ 6’6” Slide-in Ramps
[A] 3’ Dovetail w/ 5’ Slide-in Ramps (18’ and up)
[B] 3’ Dovetail w/ 2, 16”x60” Foldup Ramps
[C] 3’ Dovetail w/ 3, 16”x60” Foldup Ramps
[D] 3’ Dovetail w/ 2, 31”x66”HD Foldup Ramps
[F] 5’ Dove with 2 Flipover Ramps (Must Have R opt)
[G] 3’ Dovetail w/ 3 31”x66”HD Foldup Ramps
[J] 3’ Dovetail w/ 2 16”x60” Dbl Hinge Foldup Ramps
[M] 3’ Dovetail w/ 3 16”x60” Dbl Hinge Foldup Ramps
[P] 4’ Dove with 2 Flipover Ramps
[R] 4’ Dove with 3 Flipover Ramps
[T] 5’ Dove with 3 Flipover Ramps
[U] 5’ Dove 3 31”x66” Fld Up Rmp.(Must Have R opt)
[Y] 4’ Dove with 4ft. Monster Ramps (20’ and up)
[Z] 5’ Dove 2 31”x66” Fld Up Rmp.(Must Have R opt)

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[2] Primer + Tractor Green Powder Coat
[3] Primer + White Powder Coat
[4] Primer + Equipment Yellow Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer

Other Options

[-BWFL] Blackwood Calssic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-DL01] 1 Pair of Flushmount D-Rings on Wood Floor
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-EL01] Add 7-Way RV Plug to Rear Bumper
[-FR01] Under Frame Fork Rack (96” Wide Only)
[-JA06] 2 Hydraulic Monster Jacks™
[-LT10] Light Bar w/4 Lights
[-RT01] 1 Pair Weld-On Strap Ratchets
[-S101] 1 Side-mount Toolbox 30”x14”
[-SP01] Under Frame Spare Tire and Mount
[0] Cold Weather Wiring Harness (7-Way RV)
[2] Monster Steps on Both Sides
[4] Plate for Winch
[7] Douglas Fir Decking
[8] Full Size Toolbox (Bumper Pull)
[C] 12”oc Crossmembers
[E] Rough Oak Floor
[G] 2nd Jack
[H] Receiver Hitch
[K] 4” Ratchets every 4ft w/ Slide Track
[M] Mount Only for Spare Tire
[P] 11ga (1/8”) DP Steel Floor w/ 4 D-Rings & 12”oc
[Q] Front Toolbox (Bumper Pull)
[R] 102” Deck Width
[T] Spare Tire and Mount (Bumper Pull)
[U] Deck on the Neck (102” Wide 96” Long)
[W] Warn M12000 Winch w/Plate & Battery
[Z] Ramp Support Arms w/. Dove

Parts Guide

Model Part Description Category Part Number
F8 7,000# Electric / Spring
(Axle Brake 70865E-ST-EZ 73x58)
AXLE 110120
F8 Reflector Tape, Conspicuity R&W BODY 170237
F8 Coupler,14K 2-5/16” Adj. BULLDOG COUPLER 140201
F8 Tailight 6” Oval LED Red Sealed
(Dovetail)
ELECTRICAL & LIGHTS 170216
F8 Bracket Weld-on - 3/8” Safety Chain HARDWARE 180411
F8 Jack 12K Dropleg SW GN JACK 140102
F8 Rear Support Jack
(Option)
JACK 140100
F8 Mid-mount LED 6” Oval Amber lamp LIGHTING 170208
F8 Tailight 4” Round LED Red Sealed
(Straight Deck)
LIGHTING 170214
F8 Ramp (fold-up) w/Adj. Knee
(Fold-up Ramps)
RAMPS 160244
F8 Bolt Equal’r 7/8”x4.75” Slipper 7K SUSPENSION 120119
F8 Bolt, Hanger 9/16x3.5” Slipper 7K SUSPENSION 120118
F8 Equalizer 7K  QRG (12”) SUSPENSION 120216
F8 Hanger Center 7K Slipper SUSPENSION 120115
F8 Hanger Front 7K Slipper SUSPENSION 120116
F8 Hanger Kit Triple Axle Slipper 7K SUSPENSION 120113
F8 Hanger Kt Tandem Axle Slipper 52/7k SUSPENSION 120112
F8 Hanger Rear 7K Slipper SUSPENSION 120117
F8 Lock Nut for 7K Eq Bolt 7/8” SUSPENSION 120218
F8 Lock Nut for hanger bolt 9/16” SUSPENSION 120311
F8 Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
F8 U-Bolt Kit 3” Rd. for 5.2-7K SUSPENSION 120301
F8 16” White Spoke Wheels w/ 8 on 6.5”
(7000 lb axle)
TIRES & WHEELS 130303

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
