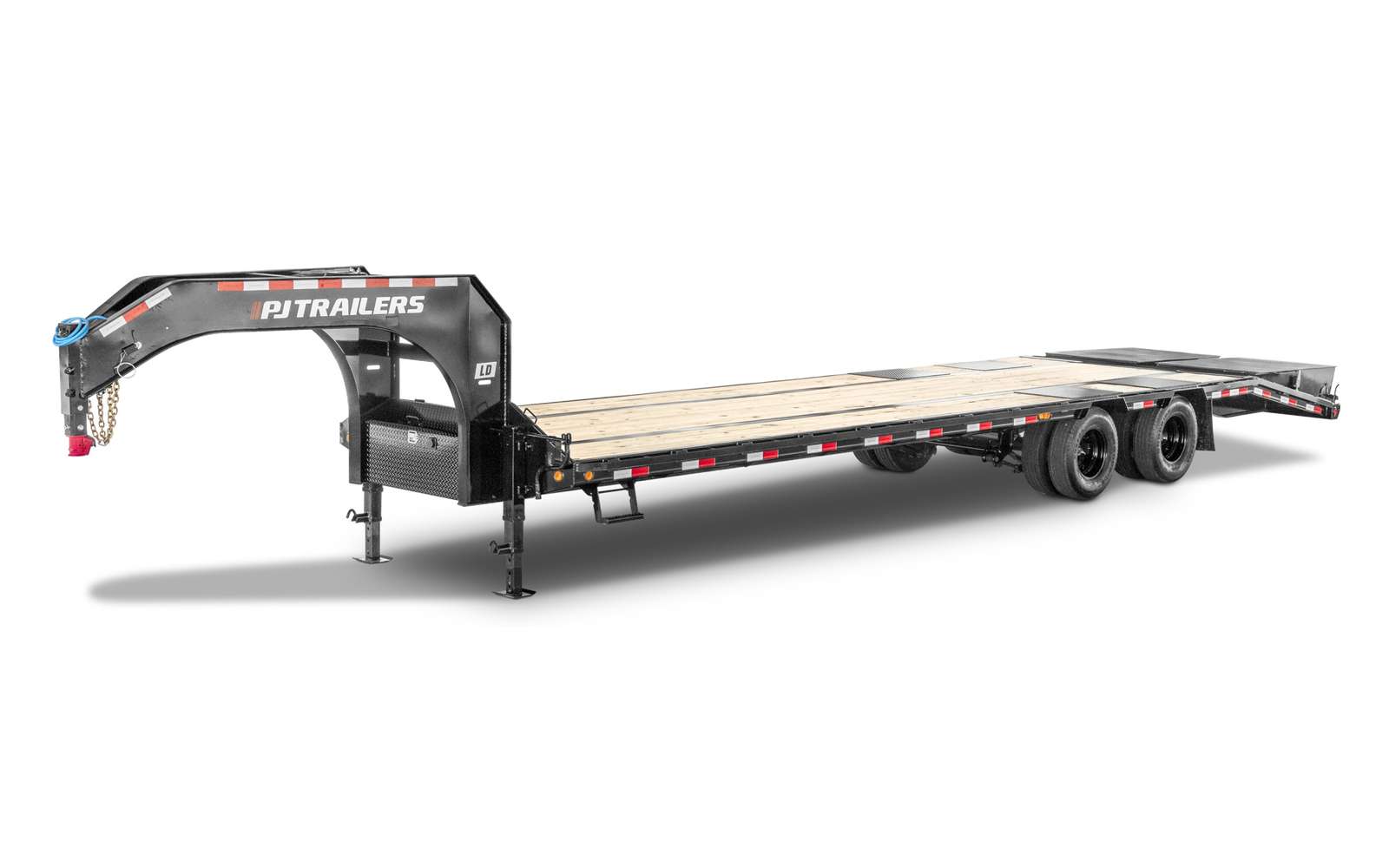

Low-Pro Flatdeck with Duals (LD)

Available Lengths

  • 20’
  • 22’
  • 24’
  • 25’
  • 26’
  • 28’
  • 30’
  • 32’
  • 34’
  • 35’
  • 36’
  • 38’
  • 40’
  • 42’
  • 44’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 25,000 lb. G.V.W.R.
  • 10,000 lb. x 2 G.A.W.R.
  • GN 2 5/16” Ball Bulldog Coupler 25,000 lb
  • Safety Chains
  • 2 - Drop Leg Jacks (10,000 lb.)
  • 2 - Dexter Oil Bath Brake Axles (10,000 lb.)
  • 5 Leaf Slipper Spring Suspension
  • 8 Dual Wheels, 16” Grey, 8 on 6.5” Bolt Pattern
  • 8 - 16” 235/80R16 Radial Tires (3,090 lb)
  • Rubrail & Stake Pockets
  • Electric Breakaway Kit w/ Charger
  • DOT Reflective Tape
  • Monster Steps on Both Sides
  • Lockable Front Toolbox w/ Chain Holder
  • 8’ Ramps w/ Holders
  • 12” x 19 lb. I-Beam Main Frame, Riser & Neck
  • Frame Bridge Standard on 30’ and up
  • 3” Channel Crossmembers 16” on Center
  • 2 x 6 x 1/8” Square Tubing Outer Deck Frame
  • 2” Treated Pine Lumber Deck
  • 102” Wide Deck
  • DOT Approved Flushmount Lifetime LED Lights
  • Amber Side Turn Flashers
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • 5 year Dexter Axle Warranty

Notes:
Torsion Axle option will raise Deck Height 2”.
*** MAX GVWR 36,000 on Pintle Coupler with 15k or Triple 12k Axles. ***
Bumper Pull Tongue Length (6’ 11”), Gooseneck Length (8’ 11”).


Estimated Weights

Length Axles Est. Base Weight
20' 2 x 10,000 lbs 5,780 lbs / 2,622 kg
22' 2 x 10,000 lbs 5,920 lbs / 2,685 kg
25' 2 x 10,000 lbs 6,300 lbs / 2,858 kg
28' 2 x 10,000 lbs 6,840 lbs / 3,103 kg
30' 2 x 10,000 lbs 7,240 lbs / 3,284 kg
32' 2 x 10,000 lbs 7,560 lbs / 3,429 kg
34' 2 x 10,000 lbs 7,820 lbs / 3,547 kg
36' 2 x 10,000 lbs 8,200 lbs / 3,719 kg
38' 2 x 10,000 lbs 8,520 lbs / 3,865 kg
40' 2 x 10,000 lbs 8,780 lbs / 3,983 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[R] GN 2 5/16” Round (25,000 lb.) w/ Toolbox
[E] GN 2 5/16” Round (30,000 lb.) w/ 6” Longer Tube
[H] GN 2 5/16” Round (30,000 lb.) w/ Toolbox
[L] GN Load-Leveling 2 5/16” Square (30,000 lb.) & Tbx
[Q] GN 2 5/16” Square (30,000 lb.) w/ Toolbox
[S] GN 2 5/16” Square (25,000 lb.) w/ Toolbox

Axle Options

[S2BS] (2) 10,000# w/235/75R17.5" LR-J Single T&W (Dexter) Electric (Spring)
[S2BT] (2) 10,000# w/235/75R17.5" LR-J Single T&W (Dexter) Electric (Torsion)
[S2HS] (2) 10,000# w/235/75R17.5" LR-J Single T&W (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[A2AS] (2) 10,000# Axles (Dexter) Air (Spring)
[A2BS] (2) 10,000# Axles (Dexter) Electric (Spring)
[T2BS] (2) 10,000# w/235/85R16 LR-G Dual T&W(Dexter) Electric (Spring)
[T2HS] (2) 10,000# w/235/85R16 LR-G Dual T&W(Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[C2BS] (2) 12,000# Axles (Dexter) Electric (Spring)
[C2HA] (2) 12,000# Axles (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Air Ride)
[C2HS] (2) 12,000# Axles (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[C3BS] (3) 12,000# Axles (Dexter) Electric (Spring)
[C3HS] (3) 12,000# Axles (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[N2HA] (2) 12,000# w/215/75R17.5" LR-H Dual T&W (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Air Ride)
[D2BS] (2) 12,000# w/235/85R16 LR-G Dual T&W (Dexter) Electric (Spring)
[D2HS] (2) 12,000# w/235/85R16 LR-G Dual T&W (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[J2GS] (2) 15,000# w/215/75R17.5" LR-H Dual T&W (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)

Tail Options

[S] Straight Deck w/ 2 Slide-in Ramps
[A] 5’ Dovetail w/ 5’ Slide-in Ramps
[E] 5’ Dovetail w/ 2 Flip-over Ramps w/HD Gusset
[F] 5’ Dovetail w/ 2 Flip-over Ramps
[J] 5’ Dovetail w/ 3 Flip-over Ramps w/HD Gusset
[T] 5’ Dovetail w/ 3 Flip-over Ramps
[W] 5’ Dovetail w/ 2 Flip-over Monster Ramps
[Z] 5’ Dovetail w/ Power Tail (Pat. Pend. TX Only)

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[2] Primer + Tractor Green Powder Coat
[3] Primer + White Powder Coat
[4] Primer + Equipment Yellow Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer

Other Options

[-BWFL] Blackwood Classic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-DL01] 1 Pair of Flushmount D-Rings on Wood Floor
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-EL01] Add 7-Way RV Plug to Rear Bumper
[-JA01] HD 25k Jost 2x Jacks
[-JA06] 2 Hydraulic Monster Jacks™
[-LT05] Add LED Reverse Lights
[-RC01] 1 - 38” Center Deck Roller
[-RM30] No Ramps No Ramp Pockets
[-RP01] 2 - 17” Outer Deck Rollers
[-RT01] 1 Pair Weld-On Strap Ratchets
[-S301] 1 Side-mount Toolbox 45”x14”
[-S501] 1 Side-mount Toolbox 72”x14”
[-SM02] 2 Extra Side Marker Lights, 1 Per Side
[0] Cold Weather Wiring Harness (7-Way RV)
[4] Plate for Winch
[7] Douglas Fir Lumber
[9] Under Frame Tie Down Flat
[B] 22 lb. I-Beam Main Frame & Neck
[C] 12”oc Crossmembers
[E] Rough Oak Floor
[H] Receiver Hitch
[K] 4” Ratchets every 4ft w/ Slide Track
[L] Side Mount Wood Rack
[M] 6” Axle Spread (Longer Equalizer)
[N] 72” Axle Spread
[P] 11ga (1/8”) DP Steel Floor w/4 D-Rings & 12”oc
[R] Frame Bridging
[S] Diamond Plate Ramp Bottoms
[T] Torque Tube
[W] Warn M12000 Winch w/Plate & Battery
[X] Bulldog 2-speed Jacks (12,000 lb.)
[Z] Ramp Support Arms

Parts Guide

Model Part Description Category Part Number
LD 10,000# Electric / Spring
(Axle Elec Brk. Q10GD865E 74x46)
AXLE 110340
LD Reflector Tape, Conspicuity R&W BODY 170237
LD Step for Flatdeck/GN Trailers BODY 160309
LD BX1 Coupler, 2-5/16” GN Adj. 25K Round COUPLER 140228
LD Tailight 6” Oval LED Red Sealed
(Dovetail)
ELECTRICAL & LIGHTS 170216
LD Bracket Weld-on - 3/8” Safety Chain HARDWARE 180411
LD Jack 12K Dropleg SW GN JACK 140102
LD Light Kit LED - GN/PH - no dovetail
(Straight Deck)
LIGHTING 170501
LD Light Kit, LED for GN/PH - Dovetail
(Dovetail)
LIGHTING 170502
LD Mid-mount LED 6” Oval Amber lamp LIGHTING 170208
LD Tailight 4” Round LED Red Sealed
(Straight Deck)
LIGHTING 170214
LD Ramp 3” Chnl 16”x96” (GN) slide-in
(Straight Deck)
RAMPS 160210
LD Ramp Assy Flipover Dovetail LD
(Dovetail)
RAMPS 160213
LD Bolt, Equalizer,10k 1” x 6” SUSPENSION 120121
LD Bolt, Spring Eye,10k 3/4”x4-1/2” SUSPENSION 120123
LD Center Hanger - 10K 2.5”-1.75”-1” SUSPENSION 120127
LD Equalizer 10/12K 15 3/4” QRG SUSPENSION 120214
LD Equalizer 10/12K 21 3/4” QRG
(w/6” axle spread, longer equalizer)
SUSPENSION 120215
LD Front hanger - 10K 2.5”-5 3/8”.75” SUSPENSION 120128
LD Hanger Kit Tandem 10-12K Long EQ SUSPENSION 120219
LD Hanger Kit Tandem Axle Slipper 10K SUSPENSION 120114
LD Hanger, Rear for 10/12K SUSPENSION 120129
LD Nut for 10k Equalizer Bolt 1” SUSPENSION 120122
LD Nut for 10k Spring Eye Bolt 3/4” SUSPENSION 120124
LD Spring Slipper 5 leaf 5000# (10K)
(10000 lb axles)
SUSPENSION 120103
LD Spring Slipper 6 leaf ALKO 12K
(12000 lb axles)
SUSPENSION 120105
LD U-Bolt Kit 5” Round 10K
(10000 lb axles)
SUSPENSION 120303
LD U-Bolt Kit 5” Round 12k-16k
(12-16k axles)
SUSPENSION 120310
LD 16” Grey Dual Wheels w/ 8 on 6.5” TIRES & WHEELS 130306
LD Tire&Whl 235/80R16 on Dual TIRES & WHEELS 130210

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
