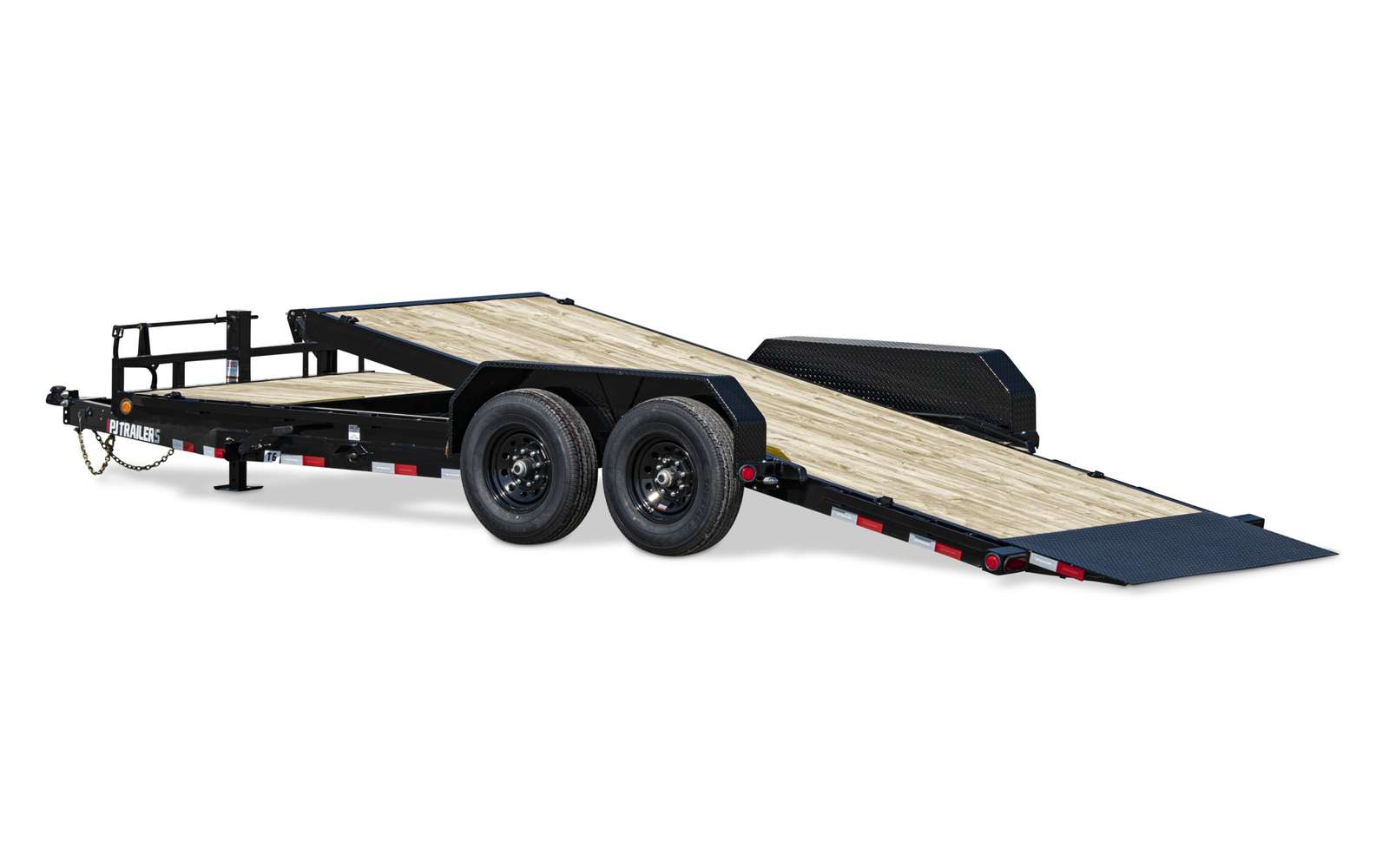

6" Channel Equipment Tilt (T6)

Available Lengths

  • 16’
  • 18’
  • 20’
  • 22’
  • 24’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 14,000 lb. G.V.W.R.
  • 7,000 lb. x 2 G.A.W.R.
  • Adjustable 2 5/16” Ball Bulldog Coupler
  • Safety Chains
  • 1 - Drop Leg Jack (10,000 lb.)
  • 2 - Dexter E- Z lube Brake Axles (7,000 lb.)
  • Torsion Suspension
  • 4 - 16” White Spoke Wheels
  • 4 - 235/80R16 Radial Tires (3,520 lb)
  • Stake Pockets & Rubrail
  • Electric Breakaway Kit w/ Charger
  • 9” x 72” Treadplate Removable Steel Fenders
  • Tool Tray In Tongue
  • 11 Degree Tilt Pitch
  • 3” x 16” Cylinder
  • 6” Channel Frame & Tongue
  • 3” Channel Crossmembers 16” on Center
  • 2” Treated Pine Lumber Deck
  • 74” Wide Tiltable Deck
  • 82” Between Fenders
  • DOT Approved Flushmount Lifetime LED Lights
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • GN Option Equipped with 2 Jacks
  • GN Equipped w/Lockable Front Toolbox
  • 10 year Dexter Torflex Axle Warranty

Notes:
*** 8” I-beam on Goosenecks. ***
Triple Axle Available on 22’ and up with 8” Channel upgrade.
*** MAX GVWR 15,680 with Tandem 7k Axle Option and Gooseneck Option . ***
*** Tilting Deck Length is 17’ 2” ***
Bumper Pull Tongue Length (5’ 1”), Gooseneck Length (8’ 7”).


Estimated Weights

Length Axles Est. Base Weight
16' 2 x 7,000 lbs 3,060 lbs / 1,388 kg
18' 2 x 7,000 lbs 3,240 lbs / 1,470 kg
20' 2 x 7,000 lbs 3,420 lbs / 1,551 kg
22' 2 x 7,000 lbs 3,600 lbs / 1,633 kg
24' 2 x 7,000 lbs 3,780 lbs / 1,715 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[J] BP 2 5/16” Adjustable (14,000 lb.)
[B] BP 2 5/16” Adjustable Rigid Mount (25,000 lb.)
[E] GN 2 5/16” Round (30,000 lb.) w/ 6” Longer Tube
[H] GN 2 5/16” Round (30,000 lb.) w/ Toolbox
[L] GN Load-Leveling 2 5/16” Square (30,000 lb.) & Tbx
[P] 3” Pintle Eye - Channel-mount (20,000 lb.)
[Q] GN 2 5/16” Square (30,000 lb.) w/ Toolbox
[R] GN 2 5/16” Round (25,000 lb.) w/ Toolbox
[S] GN 2 5/16” Square (25,000 lb.) w/ Toolbox
[T] HD 2 5/16” Adj.3 Bolt Cplr w/6 hole Chn Brkt (25k)

Axle Options

[72BT] (2) 7,000# (Dexter) Electric (Torsion)
[72GT] (2) 7,000# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Torsion)
[72KT] (2) 7,000# (Dexter) Surge Disc [Surge Coupler] (Torsion)
[72ST] (2) 7,000# (Dexter) Surge Hydraulic Drum [Surge Coupler] (Torsion)
[73BT] (3) 7,000# (Dexter) Electric (Torsion)
[73GT] (3) 7,000# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Torsion)
[92BT] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)
[93BT] (3) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)

Tail Options

[T] 16’ Tilt Deck

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[2] Primer + Tractor Green Powder Coat
[3] Primer + White Powder Coat
[4] Primer + Equipment Yellow Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer

Other Options

[-BWFL] Blackwood Classic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-BWPF] Blackwood Pro Full Deck
[-BWPO] Blackwood Pro Outer Deck
[-CH05] GN Lockable Chain Holder
[-DL01] 1 Pair of Flushmount D-Rings on Wood Floor
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-FR01] Fork Rack (18’ and Longer)
[-JA05] 1 Hydraulic Monster Jack™ Includes Front Toolbox
[-JA06] 2 Hydraulic Monster Jacks™
[-LT10] Light Bar w/4 Lights
[-RT01] 1 Pair Weld-On Strap Ratchets
[-TB02] Bumper Pull Double Deck Toolbox (Upgrade)
[-TB03] Top Riser Toolbox
[-TRA1] 1/2 x 1/2 Square Traction Bars on Rear of Deck
[0] Cold Weather Wiring Harness (7-Way RV)
[1] 18ft Power Up\Down Tilt Deck
[2] 20ft Power Up/Down Tilt Deck
[3] 22ft Power Up/Down Tilt Deck
[4] Plate for Winch
[6] 6” Taller GN Riser
[7] Douglas Fir Lumber
[9] 9,990 G.V.W.R.
[B] Solar Battery Charger
[C] 12”oc Crossmembers
[E] Rough Oak Floor
[G] 2nd Jack (Bumper Pull)
[H] Power up Power down Tilt
[K] Power Up/Down & Gravity Down
[M] Mount Only for Spare Tire
[P] 11ga(1/8”)DP Steel Floor w/4 Flushmount D-Rings & 12”oc
[Q] Front Toolbox (Bumper Pull & Pintle)
[R] Expanded Metal Traction Plate on Tailboard
[S] ¼” DP Steel Floor w/4 Flushmount D-Rings & 12”oc
[T] Spare Tire and Mount (Bumper Pull)
[U] Deck on the Neck (102” Wide 96” Long)
[W] Warn M12000 Winch w/Plate & Battery
[X] Bulldog 2-speed Jacks (12,000 lb.)
[Y] 1x1 Angle Traction Bars on Rear of Deck
[Z] Roller on Front of Deck for Winch Cable

Parts Guide

Model Part Description Category Part Number
T6 7,000# Electric / Torsion AXLE 110217
T6 Dexter Axle Torsion 7k 94x80 10* Up El AXLE 110237
T6 Clevis for Linkage on Tilt latch BODY 180127
T6 Linkage Rod on Tilt Latch 7”x1/2” BODY 180128
T6 Reflector Tape, Conspicuity R&W BODY 170237
T6 Hub Drum Brk 12K QRG 5/8” stud flat BRAKE 111208
T6 Coupler,14K 2-5/16” Adj. BULLDOG COUPLER 140201
T6 Fender Tandem Steel DP C6-C8 Paris FENDER 160611
T6 Bracket Weld-on - 3/8” Safety Chain
(bumper pull/with triple axle)
HARDWARE 180411
T6 Bracket Weld-on - 3/8” Safety Chain
(gooseneck)
HARDWARE 180411
T6 Bracket Weld-on 5/16” Safety Chain
(bumperpull)
HARDWARE 180410
T6 Valve, 3-way, Diverting Ball HARDWARE 190109
T6 Cylinder, 3”x16” for Tilt Trailers HYDRAULIC 190203
T6 Cylinder, 3”x16” for Tilt Trailers HYDRAULIC 190203
T6 Oil Reservoir HYDRAULIC 190304
T6 Jack 12K Dropleg SW GN JACK 140102
T6 Light Pkg for T6
(Incandescent)
LIGHTING 170120
T6 Light Pkg LED for T6 LIGHTING 170121
T6 Tilt Trlr Tailight Bracket Straight LIGHTING 170125
T6 16” White Spoke Wheels w/ 8 on 6.5”
(7000 lb axle)
TIRES & WHEELS 130303

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
