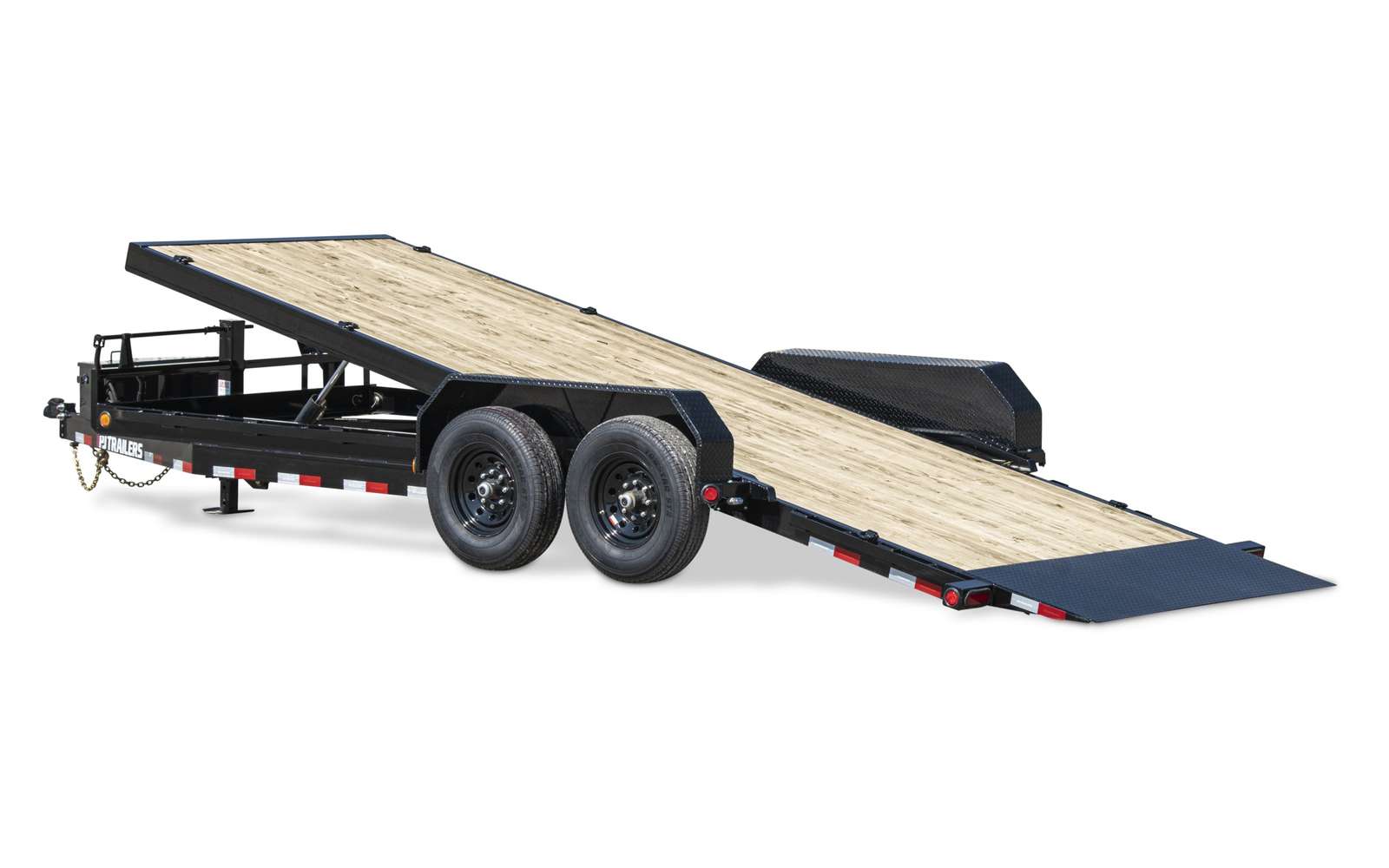

Powered Full Tilt (TF)

Available Lengths

  • 18’
  • 20’
  • 22’
  • 24’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 14,000 lb. G.V.W.R.
  • 7,000 lb. x 2 G.A.W.R.
  • Adjustable 2 5/16” Ball Bulldog Coupler
  • Safety Chains
  • 1 - Drop Leg Jack (10,000 lb.)
  • 2 - Dexter E- Z lube Brake Axles (7,000 lb.)
  • Torsion Suspension
  • 4 - 16” White Spoke Wheels
  • 4 - 235/80R16 Radial Tires (3,520 lb)
  • Stake Pockets & Rubrail
  • Electric Breakaway Kit w/ Charger
  • 9” x 72” Treadplate Removable Steel Fenders
  • Lockable Toolbox In Tongue
  • 6” Channel Frame & Tongue
  • 3” Channel Crossmembers 16” on Center
  • 2” Treated Pine Lumber Deck
  • 74” Wide Tiltable Deck
  • 82” Between Fenders
  • DOT Approved Flushmount Lifetime LED Lights
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • Hydraulic Power Up & Down
  • Twin 3” X 16” Cylinders
  • Interstate (TM) Deep Cycle Battery
  • 110V Integrated Trickle Charger
  • GN Option Equipped with 2 Jacks
  • GN Equipped w/Lockable Front Toolbox
  • 3”x 16” w/o 8”ch. & 3” x 25” w/8”ch or 24’ lengths
  • 10 year Dexter Torflex Axle Warranty

Notes:
*** 24’ has 8” Channel frame & 12” I-beam Neck. ***
See T6 For Gravity Tilt.
*** MAX GVWR 15,680 with Tandem 7k Axle Option and Gooseneck Option . ***
Bumper Pull Tongue Length (5’ 3”), Gooseneck Length (8’ 6”).


Estimated Weights

Length Axles Est. Base Weight
18' 2 x 7,000 lbs 3,420 lbs / 1,551 kg
20' 2 x 7,000 lbs 3,680 lbs / 1,669 kg
22' 2 x 7,000 lbs 4,000 lbs / 1,814 kg
24' 2 x 7,000 lbs 4,560 lbs / 2,068 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[J] BP 2 5/16” Adjustable (14,000 lb.)
[B] BP 2 5/16” Adjustable Rigid Mount (25,000 lb.)
[E] GN 2 5/16” Round (30,000 lb.) w/ 6” Longer Tube
[H] GN 2 5/16” Round (30,000 lb.) w/ Toolbox
[L] GN Load-Leveling 2 5/16” Square (30,000 lb.) & Tbx
[P] 3” Pintle Eye - Channel-mount (21,000 lb.)
[Q] GN 2 5/16” Square (30,000 lb.) w/ Toolbox
[R] GN 2 5/16” Round (25,000 lb.) w/ Toolbox
[S] GN 2 5/16” Square (25,000 lb.) w/ Toolbox
[T] HD 2 5/16” Adj.3 Bolt Cplr w/6 hole Chn Brkt (25k)

Axle Options

[52BT] (2) 5,200# (Dexter) Electric (Torsion)
[72BT] (2) 7,000# (Dexter) Electric (Torsion)
[72GT] (2) 7,000# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Torsion)
[72KT] (2) 7,000# (Dexter) Surge Disc [Surge Coupler] (Torsion)
[72ST] (2) 7,000# (Dexter) Surge Hydraulic Drum [Surge Coupler] (Torsion)
[73BT] (3) 7,000# (Dexter) Electric (Torsion)
[92BT] (2) 7,000# w/235/85R16 LR-G Tires (Dexter) Electric (Torsion)

Tail Options

[T] Tilt Deck

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[2] Primer + Tractor Green Powder Coat
[3] Primer + White Powder Coat
[4] Primer + Equipment Yellow Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer

Other Options

[-BWFL] Blackwood Classic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-DL01] 1 Pair of Flushmount D-Rings on Wood Floor
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-HY05] Power Up/Down & Gravity Down Upgrade
[-LT10] Light Bar w/4 Lights
[-RT01] 1 Pair Weld-On Strap Ratchets
[-TB02] Bumper Pull Double Deck Toolbox (Upgrade)
[-TB03] Top Riser Toolbox
[-TB04] Full Size Divided Toolbox Upgrade (BP Only)
[-TRA1] 1/2 x 1/2 Square Traction Bars on Rear of Deck
[0] Cold Weather Wiring Harness (7-Way RV)
[4] Plate for Winch
[5] Solar Battery Charger
[6] 6” Taller GN Riser
[7] Douglas Fir Lumber
[8] 8” Channel Upgrade
[9] 9,990 G.V.W.R.
[C] 12”oc Crossmembers
[E] Rough Oak Floor
[G] 2nd Jack (Bumper Pull)
[M] Mount Only for Spare Tire
[N] Diamond Plate Running Boards
[P] 11ga(1/8”)DP Steel Floor w/4 Flushmount D-Rings & 12”oc
[R] 102” Deck Width From Fenders to Front of Deck
[S] ¼” DP Steel Floor w/4 Flushmount D-Rings & 12”oc
[T] Spare Tire and Mount (Bumper Pull)
[U] Deck on the Neck (102” Wide 96” Long)
[W] Warn M12000 Winch w/Plate & Battery
[X] Bulldog 2-speed Jacks (12,000 lb.)
[Y] 1x1 Angle Traction Bars on Rear of Deck
[Z] Roller on Front of Deck for Winch Cable

Parts Guide

Model Part Description Category Part Number
TF 7,000# Electric / Torsion AXLE 110217
TF Dexter Axle Torsion 7k 94x80 10* Up El AXLE 110237
TF Reflector Tape, Conspicuity R&W BODY 170237
TF Coupler,14K 2-5/16” Adj. BULLDOG COUPLER 140201
TF Fender Tandem Steel DP C6-C8 Paris FENDER 160611
TF Bracket Weld-on - 3/8” Safety Chain
(gooseneck)
HARDWARE 180411
TF Bracket Weld-on - 3/8” Safety Chain
(bumper pull/with triple axle)
HARDWARE 180411
TF Bracket Weld-on 5/16” Safety Chain
(bumperpull)
HARDWARE 180410
TF Cylinder, 3”x16” for Tilt Trailers HYDRAULIC 190203
TF Pump Dual Action KTI w/Remote HYDRAULIC 190601
TF Toolbox  BP Dump w/Holes
(Bumper Pull)
HYDRAULIC 160301
TF Jack 12K Dropleg SW GN JACK 140102
TF Light Pkg LED for T6 LIGHTING 170121
TF 16” White Spoke Wheels w/ 8 on 6.5”
(7000 lb axle)
TIRES & WHEELS 130303

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
