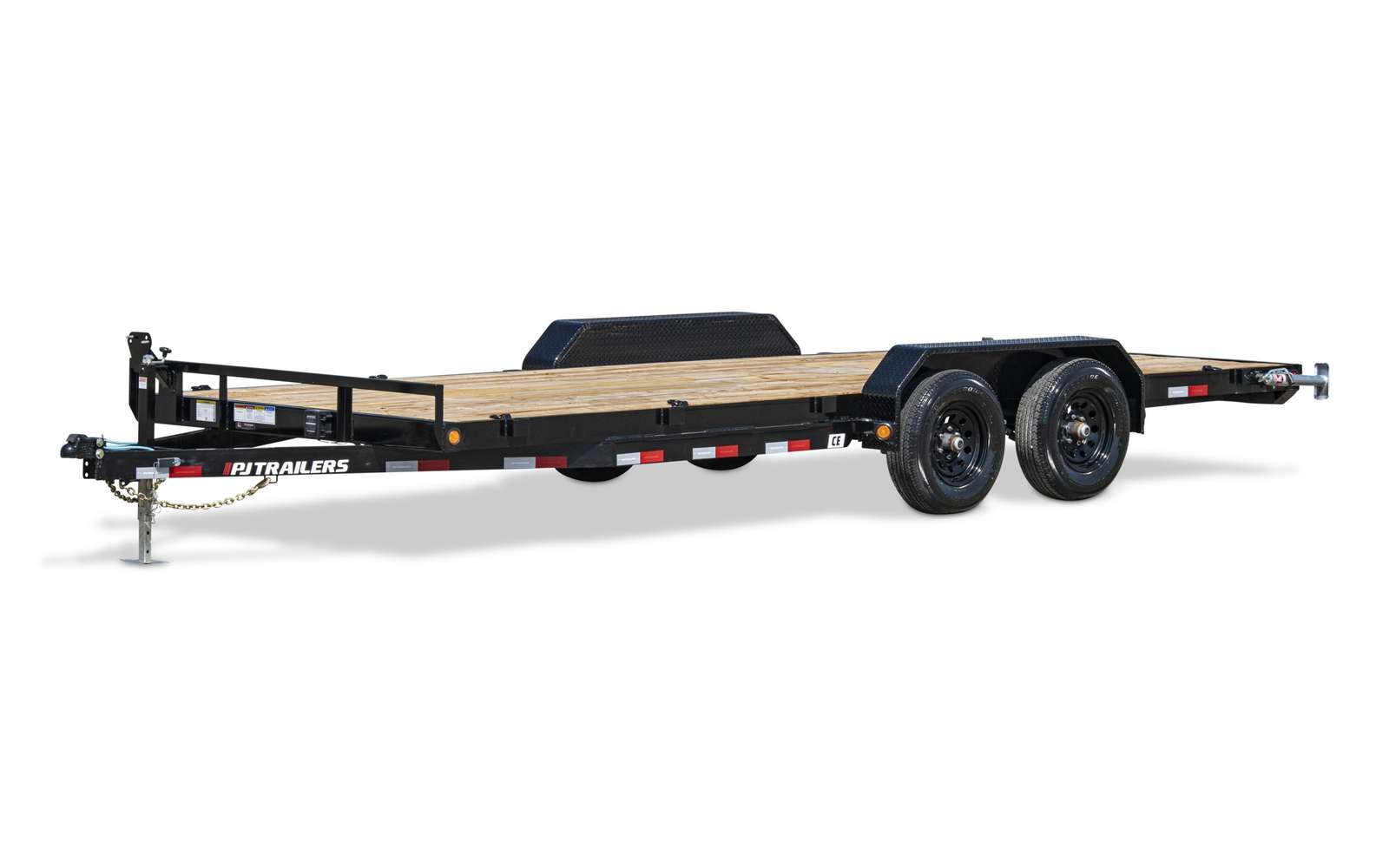

5" Channel Equipment (CE)

Available Lengths

  • 12’
  • 14’
  • 16’
  • 18’
  • 20’
  • 22’

Dare to Compare

Dare To Compare

Financing

Financing

Standard Features

  • 9,990 lb. G.V.W.R.
  • 5,200 lb. x 2 G.A.W.R.
  • BP 2 5/16” Adjustable (14,000 lb.)
  • Safety Chains
  • 1 - Drop Leg Jack (8,000 lb.)
  • 2 - Dexter E- Z lube Brake Axle (5,200 lb.)
  • 6 Leaf Slipper Spring Suspension
  • 4 -15” White Spoke Wheels
  • 4 - 225/75R15 Radial Tires
  • Stake Pockets
  • Electric Breakaway Kit w/ Charger
  • 9” x 72” Treadplate Removable Steel Fenders
  • 5’ Channel Ramps w/ Holder
  • Dual Bulldog Rear Support Jacks
  • 5” Channel Frame & Tongue
  • 3” Channel Crossmembers 16” on Center
  • 2” Treated Pine Lumber Deck
  • 83” Wide Deck (Except with Drop or Torsion Axles)
  • DOT Approved Flushmount Lifetime LED Lights
  • Sealed Wire Harness
  • Sand Blasted, Acid Washed, Powder Coated
  • 5 year Dexter Axle Warranty

Notes:
Trailer will have 80” Frame with Torsion or Drop Axles Bumper Pull .
Tongue Length (3’ 5”).
***8k Drop Leg Jack Is Welded Onto Texas/Ohio Units***
***Rear support jacks standard on 16’ or longer w/5200# axles or larger and also including ramps without support legs. Support legs only come standard on foldup ramps and HD gate options***

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[J] BP 2 5/16” Adjustable (14,000 lb.)
[A] BP 2 5/16” A-Frame
[B] BP 2 5/16” Adjustable Rigid Mount (25,000 lb.)
[P] 3” Pintle Eye - Channel-mount (20,000 lb.)
[V] BP 2 5/16” Adj. (14,000 lb.) w/8 Hole Chan Bracket
[W] 3” Pintle Eye Chan Mnt (20k lb.) w/8 Hole Ch Brckt
[X] HD 2 5/16” Adj Ch Mnt 3 Bolt 20k w/8 Hole Ch Brckt

Axle Options

[52ED] (2) 5,200# (Dexter) Electric (Drop Axle)
[52ES] (2) 5,200# (Dexter) Electric (Spring)
[52ET] (2) 5,200# (Dexter) Electric (Torsion)
[52HS] (2) 5,200# (Dexter) Elec/Hyd Disc (1,600 PSI Pump) (Spring)
[52SD] (2) 5,200# (Dexter) Surge Hydraulic Drum [Surge Coupler] (Drop Axle)
[52SS] (2) 5,200# (Dexter) Surge Hydraulic Drum [Surge Coupler] (Spring)
[52ST] (2) 5,200# (Dexter) Surge Hydraulic Drum [Surge Coupler] (Torsion)

Tail Options

[S] Straight deck w/ 5’ Slide-in Ramps
[2] 2’ Dovetail w/ 5’ Slide-in Ramps
[4] 4’ Dovetail w/ 5’ Slide-in Ramps
[A] 2’ Dovetail w/ 2 Fold-up Ramps
[B] Straight Deck w/ 4’ Split Heavy Duty Gate
[C] Straight Deck w/ 2 Fold-up Ramps
[D] 4’ Dovetail w/ 2 Fold-up Ramps
[E] 2’ Dovetail w/ 3 Fold-up Ramps
[H] Straight Deck w/ 4’ Heavy Duty Fold-up Gate
[J] 2’ Dovetail w/ 4’ Heavy Duty Fold-up Gate
[K] 2’ Dovetail w/ Split Heavy Duty Gate
[L] 4’ Dovetail w/ 4’ Heavy Duty Gate
[M] 4’ Dovetail w/ Split Heavy Duty Gate
[N] 2’ Dovetail w/ 5’ Rear Slide-in Ramps
[P] 4’ Dovetail w/ 5’ Rear Slide-in Ramps
[R] Straight Deck w/ Rear Slide-in Ramps
[U] 2’ Dovetail w/ 5’ Dbl Hinge Fold-up Ramps
[V] 2’ Dovetail w/ 31x66 HD Fold-up Ramps
[W] Straight Deck w/ 5’ Dbl Hinge Fold-up Ramps

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[2] Primer + Tractor Green Powder Coat
[3] Primer + White Powder Coat
[4] Primer + Equipment Yellow Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Y] Equipment Yellow Powder Coat
[Z] No Paint No Primer

Other Options

[-BWFL] Blackwood Classic Full Deck
[-BWOT] Blackwood Classic Outer Deck
[-BWPF] Blackwood Pro Full Deck
[-BWPO] Blackwood Pro Outer Deck
[-DL01] 1 Pair of Flushmount D-Rings on Wood Floor
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-FE05] Weld on Fenders
[-LB01] Douglas Fir Lumber (Texas & Ohio Only)
[-TB01] Front Toolbox
[0] Cold Weather Wiring Harness (Texas & Ohio Only)
[3] 10k Jack (Bumper Pull)
[4] Plate for Winch
[5] Upgrade to 235/80 R16 on 52k Axles
[8] 2 Stake Pockets In Front of Trailer
[9] 4ft Expanded Metal Sides (Removable)
[A] Side Mount ATV Ramps (12ft or Longer)(Must Incl. Option R)
[B] 12”oc Crossmembers
[C] 4ft Solid Metal Sides (Removable)
[E] Rough Oak Floor (Texas and Ohio Only)
[J] Receiver Hitch
[K] Expanded Metal Chain Tray
[N] Diamond Plate Running Boards (Texas Only)
[P] 2” Pipetop Siderails (Removable)
[Q] Rubrail
[S] 11ga(1/8”) DP Steel Floor w/ 4 Flushmount D-Rings
[T] Mount Only for Spare Tire
[V] Spare Tire and Mount
[Z] 22” Solid Metal Sides w/ 2” pipe-top (Removable)

Parts Guide

Model Part Description Category Part Number
CE 5,200# Electric / Spring
(Axle Brake 52655E-ST-EZ 95x80)
AXLE 110116
CE Dexter Axle El 52655E-ST-EZ 95x80 AXLE 110185
CE Reflector Tape, Conspicuity R&W BODY 170237
CE Coupler,14K 2-5/16” Adj. BULLDOG COUPLER 140201
CE Fender Tandem 9x72 Alum DP - 15”
(3500 lb axle)
FENDER 160601
CE Fender, Tandem Steel DP 14” Black FENDER 160621
CE Bracket Weld-on 5/16” Safety Chain HARDWARE 180410
CE Jack, 5K Pipe Mount 15” Topwind
(Option)
JACK 140100
CE Jack, 7K Dropleg Square Topwind
(Bumper pull)
JACK 140101
CE Ramp 3” Channel 12”x60” C5&C6 Paris
(Slide-in Ramps)
RAMPS 160205
CE Bolt, Equalizer, 7/8”x4.75” Slipper 7K
(with 5.2k axles)
SUSPENSION 120119
CE Bolt, Hanger 9/16x3.5” Slipper 7K
(with 5.2k axles)
SUSPENSION 120118
CE Equalizer 7Kæ QRG (12”)
(5200 lb axles)
SUSPENSION 120216
CE Hanger Center 7K Slipper
(5200 lb axles)
SUSPENSION 120115
CE Hanger Front 7K Slipper
(5200 lb axles)
SUSPENSION 120116
CE Hanger Rear 7K Slipper
(5200 lb axles)
SUSPENSION 120117
CE Lock Nut for 7K Eq Bolt 7/8”
(with 5.2k axles)
SUSPENSION 120218
CE Lock Nut Stover 9/16”-18 SUSPENSION 180152
CE Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
CE U-Bolt Kit 3” Rd. for 5.2-7K
(5200 lb axles)
SUSPENSION 120301
CE U-Bolt Kit 3.5” Rd. for 8K SUSPENSION 120302
CE 16” white spoke Wheel w/ 6 on 5.5”
(5200 lb axle)
TIRES & WHEELS 130302
CE Tire&Whl 225/75R15 6 on 5.5” white spk TIRES & WHEELS 130224

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
