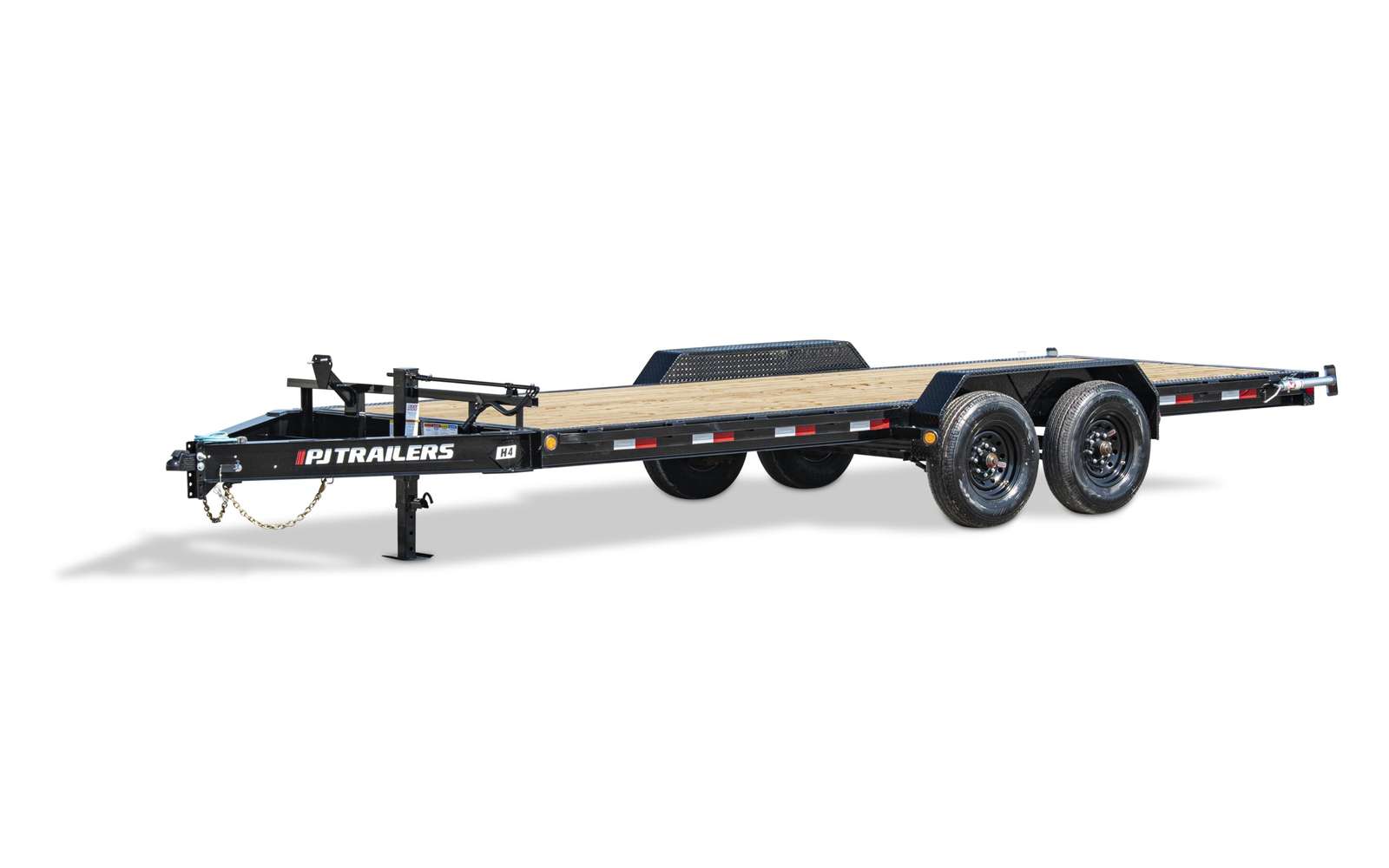

8" Pro-Beam Equipment (H4)

Available Lengths

  • 20’
  • 22’
  • 24’
  • 26’
  • 28’

Dare to Compare

Dare To Compare



Standard Features

  • 16,000 lb. G.V.W.R.
  • 8,000 lb. x 2 G.A.W.R.
  • HD 2 5/16” Adjustable 3 Bolt Coupler
  • Safety Chains
  • 1 - Drop Leg Jack (10,000 lb.)
  • 2 - Dexter Oil Bath Brake Axles (8,000 lb.)
  • 6 Leaf Slipper Spring Suspension
  • 4 - 16” White Spoke Wheels
  • 4 - 235/85R16 14 Ply Radial Trs (4,080 lb)
  • Rubrail w/Stake Pockets
  • Electric Breakaway Kit w/ Charger
  • 9” x 72” Treadplate Removable Steel Fenders
  • 5’ Channel Ramps w/ Holder
  • Dual Bulldog Rear Support Jacks
  • 8” x 10 lb. I-Beam Main Frame & Tongue
  • 3” Channel Crossmembers 16” on Center
  • 2” Treated Pine Lumber Deck
  • 82” Wide Deck
  • DOT Approved Flushmount Lifetime LED Lights
  • Sealed Bargman Wire Harness w/ 7-Way RV Plug
  • Sand Blasted, Acid Washed, Powder Coated
  • Tool Tray In Tongue
  • GN Option Equipped with 2 Jacks
  • GN Equipped w/Lockable Front Toolbox
  • 5 year Dexter Axle Warranty


Default options, those included in the base model, are marked by a check .

Coupler Options

[T] HD 2 5/16” Adj.4 Bolt Cplr w/6 hole Chn Brkt (20k)
[B] BP 2 5/16” Adjustable Rigid Mount (25,000 lb.)
[C] Rigid Mount Pintle Eye- Face-mount
[P] 3” Pintle Eye - Channel-mount (20,000 lb.)
[R] GN 2 5/16” Round (25,000 lb.) w/ Toolbox
[S] GN 2 5/16” Square (25,000 lb.) w/ Toolbox
[W] 3” Pintle Eye Chan Mnt (20k lb.) w/8 Hole Ch Brckt

Axle Options

[K2BS] (2) 8,000# Oil Bath w/215/75R17.5 LR-H Singles(Dexter) Electric (Spring)
[82BS] (2) 8,000# Oil Bath w/235/85R16 LR-G Tires (Dexter) Electric (Spring)

Tail Options

[S] Straight Deck w/ 5’ Rear Slide-in Ramps
[5] 3.5’ Dovetail w/2 Monster Ramps
[D] 2’ Dovetail w/ 31x66 HD Fold-up Ramps

Color Options

[K] Black Powder Coat
[0] Primer + Black Powder Coat
[1] Primer + Red Powder Coat
[3] Primer + White Powder Coat
[5] Primer + Tractor Orange Powder Coat
[6] Primer + Grey Powder Coat
[8] Primer + Desert Tan Powder Coat
[G] Grey Powder Coat
[N] Tractor Orange Powder Coat
[P] Primer Only
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Z] No Paint No Primer

Other Options

[-BW03] Add BlackWood Pro to Dovetail
[-BWPF] Blackwood Pro Full Deck
[-BWPO] Blackwood Pro Outer Deck
[-CP08] Upgrade to 8 Hole Channel Adjustable Coupler
[-CWB1] Upgrade to Black Spoke Wheels
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DON1] Removable Deck on the Neck (102” Wide 96” Long)
[-DP01] Add 11ga Diamond Plate to Top of Slide in Ramps
[-DR01] 1 Pair D-Rings
[-DS05] 3/16” DP Steel Floor w/4 Flushmount D-Rings & 12”oc
[-EL01] Add 7-Way RV Plug to Rear Bumper
[-FE05] Weld on Fenders
[-FE06] 1/4” DP HD Weld on Fenders Tandem Axle
[-JA05] 1 Hydraulic Monster Jack™ Includes Front Toolbox
[-JA06] 2 Hydraulic Monster Jacks™
[-JAB1] Upgrade to (1) - Single BULLDOG 10k Jack
[-JAB2] Upgrade to (2) - Dual BULLDOG 10k Jacks
[-LT05] Add LED Reverse Lights
[-LT10] Light Bar w/4 Lights
[-NF01] No Flooring
[-PS00] No Pin Striping
[-ST05] Spare Tire and Mount (BP) 215/75/R17.5
[-ST06] Spare Tire & Mount (Bumper Pull) G Rated
[-TB03] Top Riser Toolbox
[-TB04] Full Size Divided Toolbox Upgrade (BP Only)
[-TBTL] Locking Lid Over Tongue
[-WN12] Smittybilt Winch 12K w/Plate & Battery
[-WN18] Smittybilt Winch 17.5K w/HD Plate & Battery
[-WN95] Smittybilt Winch 9.5k w/Plate & Battery
[0] Cold Weather Wiring Harness (7-Way RV)
[2] 2nd Jack (Bumper Pull)
[4] Plate for Winch
[5] Solar Battery Charger
[6] 6” Taller GN Riser
[C] 12”oc Crossmembers
[E] Rough Oak Floor
[H] Receiver Hitch
[M] 2 3/8” Pipetop on Siderails (Removable)
[P] 11ga (1/8”) DP Steel Floor w/ 4 D-Rings & 12”oc
[Q] Front Toolbox (Bumper Pull)
[S] Mount Only for Spare Tire
[V] Rear Trailer Support Jacks
[X] Bulldog 2-speed Jacks (12,000 lb.)

Parts Guide

Model Part Description Category Part Number
H4 8,000# Electric / Spring AXLE 110087
H4 Reflector Tape, Conspicuity R&W BODY 170237
H4 HD 2-5/16 Adj.Coupler Ch Mnt 3bolt COUPLER 140221
H4 Bracket Weld-on - 3/8” Safety Chain HARDWARE 180411
H4 Jack 12K Dropleg Pin to Side (BP) JACK 140092
H4 Jack 12K Dropleg SW GN
JACK 140102
H4 Jack, 5K Pipe Mount 15” Topwind
JACK 140100
H4 Light Kit LED for 6” & 8” Carhauler LIGHTING 170504
H4 Ramp 3” Channel 12”x60” C5&C6 Paris
(Slide-in Ramps)
RAMPS 160205
H4 Ramp, Equip. Hauler UH 31”x66” RAMPS 160202
H4 Bolt, Equalizer, 7/8”x4.75” Slipper 7K
(with 5.2k axles)
H4 Bolt, Hanger 9/16x3.5” Slipper 7K
(with 5.2k axles)
H4 Equalizer 7Kæ QRG (12”)
(5200 lb axles)
H4 Hanger Center 7K Slipper
(5200 lb axles)
H4 Hanger Front 7K Slipper
(5200 lb axles)
H4 Hanger Rear 7K Slipper
(5200 lb axles)
H4 Lock Nut for 7K Eq Bolt 7/8”
(with 5.2k axles)
H4 Lock Nut for hanger bolt 9/16” SUSPENSION 120311
H4 Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
H4 U-Bolt Kit 3.5” Rd. for 8K SUSPENSION 120302
H4 16” White Spoke Wheels w/ 8 on 6.5”
(7000 lb axle)

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
