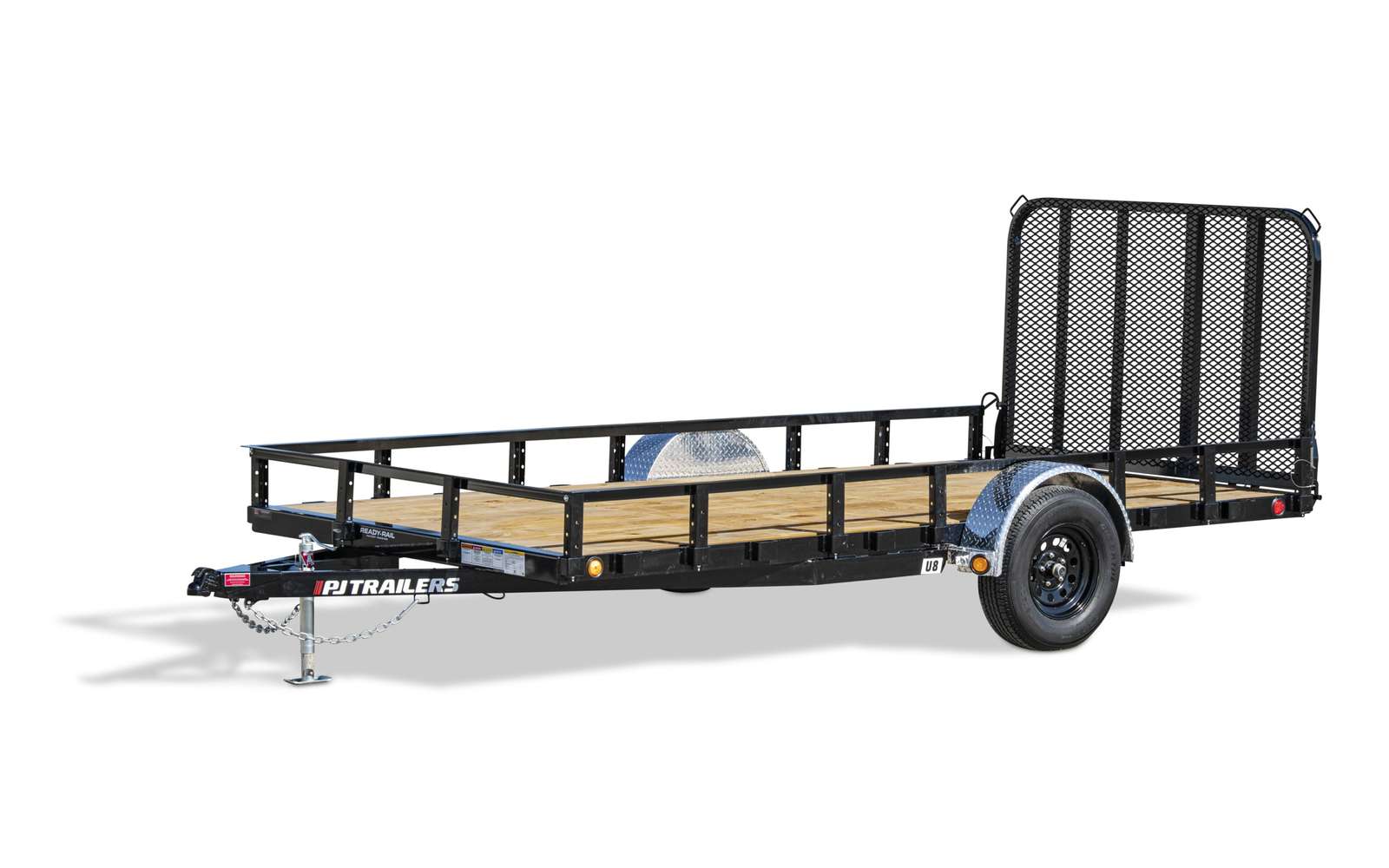

83" Single Axle Channel Utility (U8)

Resources

Media


Accessories

Available Lengths

  • 8’
  • 10’
  • 12’
  • 14’

Dare to Compare

Dare To Compare

Financing

Financing

Ready Rail® Options

Standard Features

  • 2,990 G.V.W.R.
  • 3,500 x 1 G.A.W.R.
  • 2” Ball Bulldog Coupler
  • Safety Chains
  • 1 - Bulldog Pipe Mount Swivel Jack (5,000 lb.)
  • 1 - Dexter E- Z lube Idler Axle (3,500 lb.)
  • 4 Leaf Double-eye Spring Suspension
  • 2 - NEW 15” White Spoke Wheels
  • 2 - ST205/75R15 Radial Tires (1,820 lb)
  • Stake Pockets
  • 9” x 33” Treadplate Removable Alum Fenders
  • 4” Channel Frame & Tongue
  • 2 1/2” x 2 1/2” x 3/16” Angle Crossmembers
  • 2” x 2” Removable Side Rail
  • 2” x 2” Top Rail
  • 2” Treated Canadian Spruce Pine Fir Deck
  • 83” Wide Deck
  • Flushmount 6” Oval Lifetime LED Tail Lights
  • Sealed Wire Harness
  • Sand Blasted, Acid Washed, Powder Coated
  • 5 year Dexter Axle Warranty

Notes:
Bumper Pull Tongue Length (3’ 7”).
***Dovetail Option - 14’ And Shorter Get a 16” Dove And 16’ And Longer Get a 2’ Dove***


Estimated Weights
Length Axles Est. Base Weight †
10' 1 x 3,500 lbs 1,000 lbs / 454 kg
12' 1 x 3,500 lbs 1,100 lbs / 499 kg
14' 1 x 3,500 lbs 1,240 lbs / 562 kg
14' 2 x 3,500 lbs 1,480 lbs / 671 kg
16' 2 x 3,500 lbs 1,540 lbs / 699 kg
18' 2 x 3,500 lbs 1,740 lbs / 789 kg
† Weights are estimated for base trailer only. We make no guarantee regarding the accuracy of estimated weights.

Options

Default options, those included in the base model, are marked by a check .

Coupler Options
[2] BP 2” A-Frame
[A] BP 2 5/16” A-Frame
[J] BP 2 5/16” Adjustable
[P] 3” Pintle Eye - Channel-mount

Axle Options
[31DS] (1) 3,500# (Dexter) Idler (Spring)
[31ES] (1) 3,500# (Dexter) Electric (Spring)
[51DS] (1) 5,200# (Dexter) Idler (Spring)
[51ES] (1) 5,200# (Dexter) Electric (Spring)

Tail Options
[S] Straight Deck
[B] Dovetail w/ 4’ Fold-up Gate
[F] Straight Deck with Fold In Gate
[G] Straight Deck w/ 4’ Fold-up Gate
[H] Straight Deck w/ 4’ Heavy Duty Fold-up Gate
[J] Dovetail w/ 4’ Heavy Duty Fold-up Gate
[K] Straight Deck w/ Bi-Fold Gate
[M] Dovetail w/ Bi-Fold Gate
[R] Straight Deck w/ 5’ Slide-in Ramps
[X] Dovetail w/ Split Heavy Duty Gate

Color Options
[K] Black Powder Coat
[G] Grey Powder Coat
[L] Black
[N] Tractor Orange Powder Coat
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat
[Z] No Paint

Other Options
[-BWPF] Blackwood Pro Full Deck
[-BWPO] Blackwood Pro Outer Deck
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-GT10] Ramp Gate Transition Lip
[-TB01] Front Toolbox (with 7k Jack)
[-TD01] 1 Set of Cargo Tie Down (2) Loops
[-TW05] Upgrade to 235/80 R16 on 5.2 Axles
[2] 2ft Expanded Metal Sides
[3] Upgrade to 225/75 R15 on 3.5k Axles
[4] 4ft Expanded Metal Sides
[5] Regular Sides w/Solid Metal
[6] Regular Sides w/Expanded Metal
[7] Upgrade to 7k Jack
[A] Side Mount ATV Ramps (12ft or Longer)
[B] 4ft Solid Metal Sides
[C] Landscape Toolbox (Must Have Siderails)
[F] Steel Diamond Plate Fenders
[G] 4ft Side Gate (14ft or longer)
[J] LED Light Upgrade Clearance/Marker
[M] Expanded Metal Floor
[P] 2” Pipetop Removable Siderails
[S] 11ga DP Steel Floor w/4 D-Rings & 16”oc
[T] Spare Tire Mount
[U] Rear Trailer Support Jacks
[V] Spare Tire and Mount
[W] 12” oc Crossmembers
[X] 16”oc Crossmembers
[Z] 22” Solid Metal Sides w/ 2” pipe-top

Parts Guide

Model Part Description Category Part Number
U8 3,500# Idler / Spring
(Axle Idler 35550I-ST-EZ 95x80) 		AXLE 110104
U8 LH Side Rail for U8 w/ ATV Ramps BODY 160656
U8 Rear Bumper U8 w/ Rampgate Hinges BODY 160224
U8 Reflector Tape, Conspicuity R&W BODY 170237
U8 RH Side Rail for U8 w/ ATV Ramps BODY 160655
U8 Coupler, 2” A-Frame Bulldog COUPLER 140200
U8 Gate 1ft side for U8 83in Black GATE 160266
U8 Gate Assy Heavy Duty U8 83” Black GATE 160268
U8 Mounting kit for U6, U7 or U8 gate GATE 160267
U8 Bracket Weld-on 5/16” Safety Chain HARDWARE 180410
U8 Jack, 5K Pipe Mount 15” Topwind
(Option) 		JACK 140100
U8 Tailight, 6” Oval, Red Sealed LIGHTING 170205
U8 Ramp 3” Chnl 13”x60” C5&C6 -Semin
(Slide-in Ramps) 		RAMPS 160273
U8 Bolt, Equalizer, 7/8”x4.75” Slipper 7K
(with 5.2k axles) 		SUSPENSION 120119
U8 Bolt, Hanger 9/16x3.5” Slipper 7K
(with 5.2k axles) 		SUSPENSION 120118
U8 Equalizer 3.5K Triangle Double Eye
(3500 lb axles) 		SUSPENSION 120217
U8 Equalizer 7Kæ QRG (12”)
(5200 lb axles) 		SUSPENSION 120216
U8 Hanger 2-Axle 3.5K, Frt, Ctr, Rear SUSPENSION 120145
U8 Hanger Bolt 3”x9/16” - 18
(with 3.5k axles) 		SUSPENSION 120141
U8 Hanger Center 7K Slipper
(5200 lb axles) 		SUSPENSION 120115
U8 Hanger for Front Single Axle 3.5K SUSPENSION 120142
U8 Hanger for Rear Single Axle 3.5K SUSPENSION 120143
U8 Hanger Front 7K Slipper
(5200 lb axles) 		SUSPENSION 120116
U8 Hanger Kit 1-Axle Dble Eye 3.5-52K SUSPENSION 120111
U8 Hanger Kit 2-Axle Dblæ Eye 3.5 -52K SUSPENSION 120110
U8 Hanger Kt Tandem Axle Slipper 52/7k
(5200 lb axles) 		SUSPENSION 120112
U8 Hanger Rear 7K Slipper
(5200 lb axles) 		SUSPENSION 120117
U8 Lock Nut for 7K Eq Bolt 7/8”
(with 5.2k axles) 		SUSPENSION 120218
U8 Lock Nut for hanger bolt 9/16” SUSPENSION 120311
U8 Spring Dbl.eye 4 leaf 1750#
(3500 lb axles) 		SUSPENSION 120100
U8 Spring Slipper 6 leaf 4000# 7/8K SUSPENSION 120102
U8 U-Bolt Kit 2-3/8” Round (for 3.5k)
(3500 lb axles) 		SUSPENSION 120300
U8 U-Bolt Kit 3” Rd. for 5.2-7K
(5200 lb axles) 		SUSPENSION 120301
U8 Tire ST205/75R15 Radial LR-C TIRE 130101
U8 15” white spoke Wheels w/ 5 on 5”
(3500 lb axle) 		TIRES & WHEELS 130300
U8 Tire&Whl 205/75R15 on 550 white spk
(3500 lb axle) 		TIRES & WHEELS 130200

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
