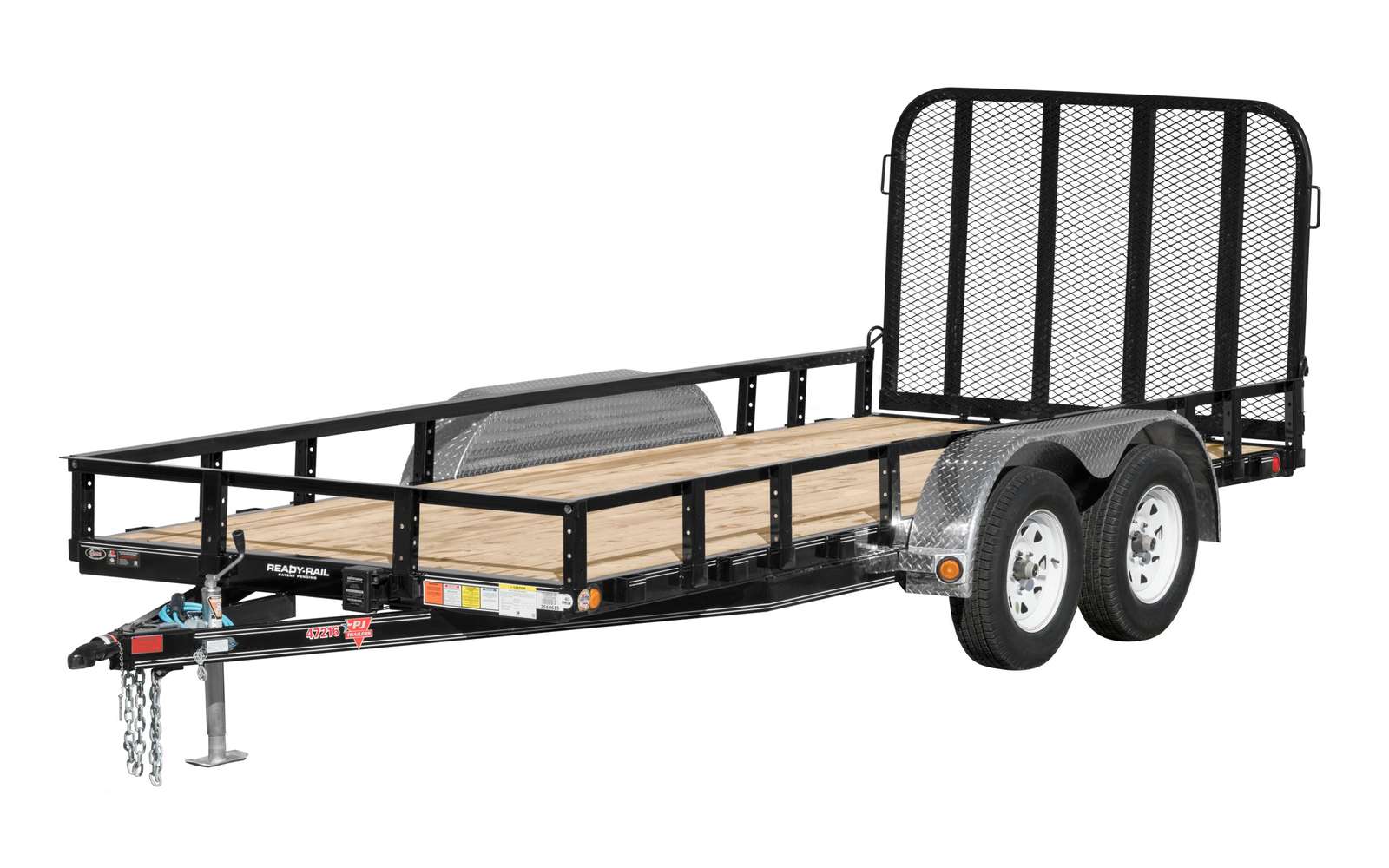

72" Tandem Axle Channel Utility (UJ)

Available Lengths

  • 10’
  • 12’
  • 14’
  • 16’
  • 18’
  • 20’
  • 22’

Dare to Compare

Dare To Compare

Financing

Financing

Ready Rail® Options


Standard Features

  • 7,000 G.V.W.R.
  • 3,500 x 2 G.A.W.R.
  • 2” Ball Bulldog Coupler
  • Safety Chains
  • 1 - Bulldog Pipe Mount Swivel Jack (5,000 lb.)
  • 2 - Dexter E- Z lube Idler Axle (3,500 lb.)
  • 4 Leaf Double-eye Spring Suspension
  • 4 - NEW 15” White Spoke Wheels
  • 4 - ST205/75R15 Radial Tires (1,820 lb)
  • Stake Pockets
  • 9” x 33” Treadplate Removable Alum Fenders
  • 4” Channel Frame & Tongue
  • 2 1/2” x 2 1/2” x 3/16” Angle Crossmembers
  • 2” x 2” Removable Side Rail
  • 2” x 2” Top Rail
  • 2” Treated Canadian Spruce Pine Fir Deck
  • 72” Wide Deck
  • Flushmount 6” Oval Lifetime LED Tail Lights
  • Sealed Wire Harness
  • Sand Blasted, Acid Washed, Powder Coated
  • 5 year Dexter Axle Warranty

Notes:
***Dovetail Option - 14’ And Shorter Get a 16” Dove And 16’ And Longer Get a 2’ Dove***
***Rear support jacks standard on 16’ or longer w/5200# axles or larger and also including ramps without support legs. Support legs only come standard on foldup ramps and HD gate options***

Options

Default options, those included in the base model, are marked by a check .

Coupler Options

[2] BP 2” A-Frame
[A] BP 2 5/16” A-Frame
[D] BP 2” Adjustable
[J] BP 2 5/16” Adjustable
[M] BP 2” Atwood Style A-Frame Coupler
[N] BP 2 5/16” Atwood Style A-Frame Coupler
[P] 3” Pintle Eye - Channel-mount

Axle Options

[32CS] (2) 3,500# (Dexter) One Electric (Spring)
[32DS] (2) 3,500# (Dexter) Idler (Spring)
[32ED] (2) 3,500# (Dexter) Electric (Drop Axle)
[32ES] (2) 3,500# (Dexter) Electric (Spring)
[32ET] (2) 3,500# (Dexter) Electric (Torsion)
[32GS] (2) 3,500# (Dexter) Elec/Hyd Drum (1,000 PSI Pump) (Spring)
[32MS] (2) 3,500# (Dexter) Surge Hyd. Drum [Surge Coupler] 1 Brake 1 Drag (Spring)
[32SS] (2) 3,500# (Dexter) Surge Hydraulic Drum [Surge Coupler] (Spring)
[52CS] (2) 5,200# (Dexter) One Electric (Spring)
[52ES] (2) 5,200# (Dexter) Electric (Spring)

Tail Options

[S] Straight Deck
[2] Dovetail w/ 5’ Slide-in Ramps
[B] Dovetail w/ 4’ Fold-up Gate
[F] Straight Deck with Fold In Gate
[G] Straight Deck w/ 4’ Fold-up Gate

Color Options

[K] Black Powder Coat
[G] Grey Powder Coat
[J] Tractor Green Powder Coat
[N] Tractor Orange Powder Coat
[R] Red Powder Coat
[T] Desert Tan Powder Coat
[W] White Powder Coat

Other Options

[-BWFL] Blackwood Classic Lumber Full Deck
[-BWOT] Blackwood Classic Lumber Outer Deck
[-DM01] 1 Extra Pair Flushmount D-Rings on Steel Floor
[-DR01] 1 Pair D-Rings
[-GT10] Ramp Gate Transition Lip
[-TB01] Front Toolbox (with 7k Jack)
[-TD01] 1 Set of Cargo Tie Down (2) Loops
[-TD05] 5 Sets of Cargo Tie Down (10) Loops
[-WR01] Trimmer Rack Kit
[2] 2ft Expanded Metal Sides
[3] Upgrade to 225/75 R15 on 3.5k Axles
[4] 4ft Expanded Metal Sides
[5] Regular Sides w/Solid Metal
[6] Regular Sides w/Expanded Metal
[7] Upgrade to 7k Jack
[8] 2 Stake Pockets In Front of Trailer
[A] Side Mount ATV Ramps (12ft or Longer)
[C] Landscape Toolbox (Must Have Siderails)
[E] Side Bi-Fold Gate
[F] Steel Diamond Plate Fenders
[G] 4ft Side Gate (14ft or longer)
[J] LED Light Upgrade Clearance/Marker
[M] Expanded Metal Floor
[P] 2” Pipetop Removable Siderails
[Q] Rubrail
[S] Steel Floor w/ 4 D-Rings & 16”oc
[T] Mount Only for Spare Tire
[U] Rear Trailer Support Jacks
[V] Spare Tire and Mount
[W] 12” oc Crossmembers
[X] 16” oc Crossmembers
[Z] 22” Solid Metal Sides w/ 2” pipe-top

Parts Guide

Model Part Description Category Part Number
UJ 3,500# Idler / Spring AXLE 110058
UJ Coupler, 2” A-Frame Bulldog COUPLER 140200
UJ Harness 8ft & 10ft U6 ELECTRICAL 170294
UJ Fender Tandem 9x72 Alum DP - 15”
(3500 lb axle)
FENDER 160601
UJ Mounting kit for U6, U7 or U8 gate GATE 160267
UJ Bracket Weld-on 5/16” Safety Chain HARDWARE 180410
UJ Jack, 5K Pipe Mount 15” Topwind
(Option)
JACK 140100
UJ Tailight, 6” Oval, Red Sealed LIGHTING 170205
UJ Ramp 3” Chnl 13”x60” C5&C6 -Semin
(Slide-in Ramps)
RAMPS 160273
UJ Equalizer 3.5K Triangle Double Eye
(3500 lb axles)
SUSPENSION 120217
UJ Hanger 2-Axle 3.5K, Frt, Ctr, Rear SUSPENSION 120145
UJ Hanger Bolt 3”x9/16” - 18
(with 3.5k axles)
SUSPENSION 120141
UJ Lock Nut Stover 9/16”-18 SUSPENSION 180152
UJ Nut 1/2” ID -for 2-3/8” U-bolt SUSPENSION 180079
UJ Spring Dbl.eye 4 leaf 1750#
(3500 lb axles)
SUSPENSION 120100
UJ U-bolt Plate, 2-3/8” SUSPENSION 120313
UJ U-Bolt, 2-3/8” x 5-1/2” x 1/2”-20 SUSPENSION 120314
UJ Tire ST205/75R15 Radial LR-C TIRE 130101
UJ 15” white spoke Wheels w/ 5 on 5”
(3500 lb axle)
TIRES & WHEELS 130300
UJ Tire&Whl 205/75R15 on 550 white spk
(3500 lb axle)
TIRES & WHEELS 130200

Parts Guide Disclaimer: Parts can change based on the options, production date, and production location of the trailer. If there is any doubt about parts fitment please contact a PJ Parts representative with the VIN of the trailer in question.
