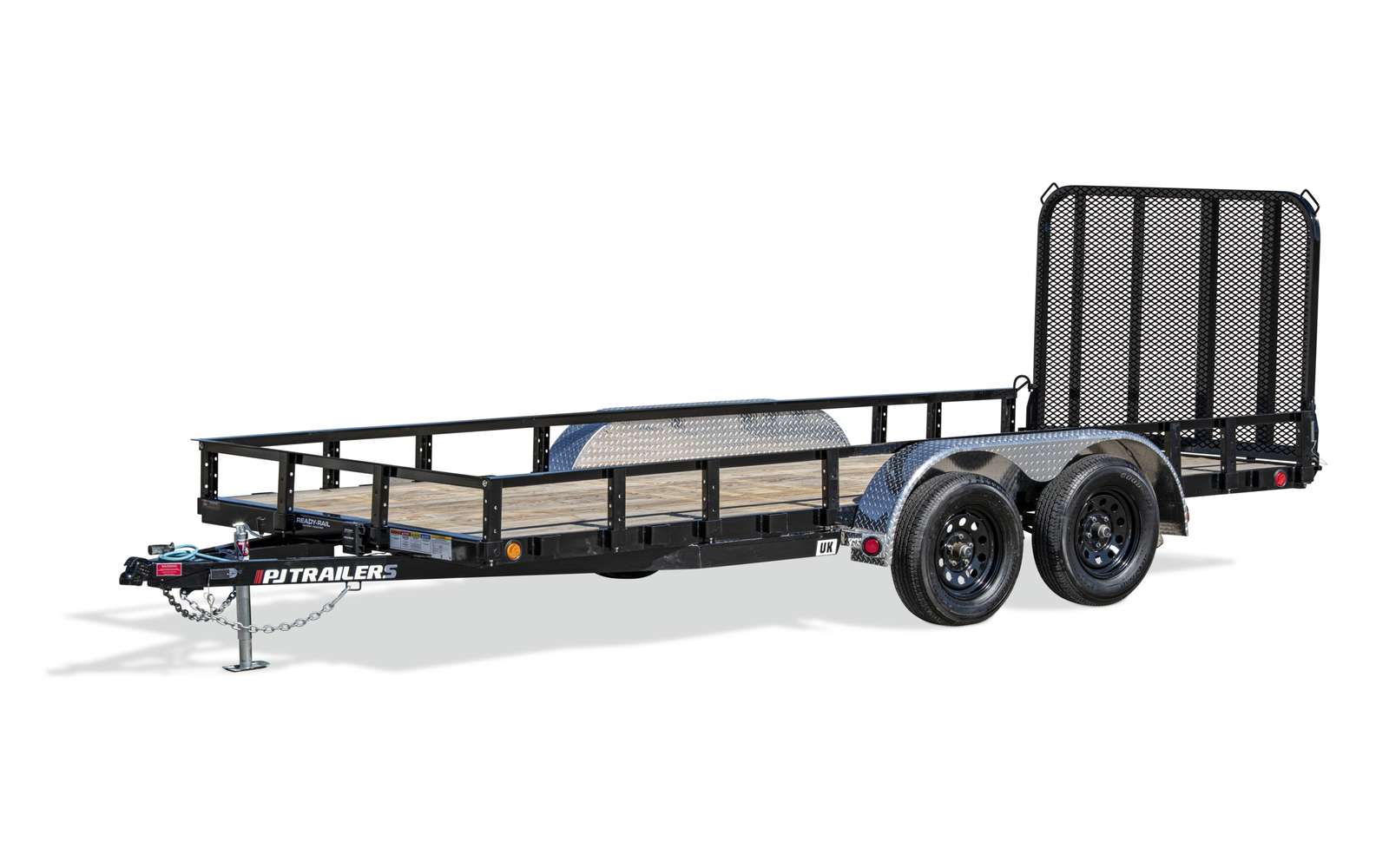

77" Tandem Axle Channel Utility (UK)
Featuring a 77’’ wide deck, our 77" Tandem Axle Channel Utility Trailer (UK) features the extra space you need to haul a wide variety of cargo—from small tractors and equipment to recreational vehicles.
For fun or for work, the UK is all about cost-effective versatility. It’s a dependable and reliable utility trailer that allows you to tackle whatever obstacles are ahead of you. It’s ready to be the trailer you need it to be to take on tomorrow’s challenges.
Trailer Specifications
77" Deck Width
18 – 10' Deck Lengths
7,000 lbs GVWR
5,550—8,049 lbs Load Capacity
Model | Pull Type | GVWR | Empty Weight | Bed Length | Bed Width | Tongue Length |
---|---|---|---|---|---|---|
UK (18') | Bumperpull | 7000 lbs | 1850 lbs | 18 | 77" | 3' 5" (41") |
UK (16') | Bumperpull | 7000 lbs | 1750 lbs | 16 | 77" | 3' 5" (41") |
UK (14') | Bumperpull | 7000 lbs | 1650 lbs | 14 | 77" | 3' 5" (41") |
UK (12') | Bumperpull | 7000 lbs | 1550 lbs | 12 | 77" | 3' 5" (41") |
UK (10') | Bumperpull | 7000 lbs | 1450 lbs | 10 | 77" | 3' 5" (41") |
Standard Feature | Click + for Options |
---|---|
Axles |
[32CS] 2) 3,500# One Electric / Spring
Available Options |
Suspension | 4-Leaf Double-Eye Spring Suspension |
Tongue | 4" Channel Wrapped Tongue |
Coupler |
[2] BP 2" A-Frame
Available Options |
Safety Chains | 5/16" Grade 30 Safety Chain w/Clevis hook (2 each) |
Jack |
Pipe Mount Swivel Jack (5,000 lb.)
Available Options |
Frame |
4" Channel Frame
Available Options |
Cross-Members | 2-1/2" Angle Crossmembers on 24" Centers |
Floor |
2" Treated Pine Lumber Deck
Available Options |
Fenders |
9" x 72" Treadplate Removable Aluminum Fenders
Available Options |
Ramps |
Available Options |
Stake Pockets |
Stake Pockets along both sides (Quantity depends on length)
Available Options |
Lights |
Available Options |
Wiring | All-Weather Wiring Harness (7-way RV) |
Paint Color |
[K] Black Powder Coat
Available Options |
Tie-Downs |
Available Options |
Breakaway System | Electric Breakaway System w/ Charger |
Sides |
Available Options |
Storage |
Available Options |
Top Rail | 2" x 2" Top Rail |
Cargo Winch |
Available Options |
Uprights | 2" x 2" Removable Side Rail equipped with Ready Rail® |
Tail |
[S] Straight Deck
Available Options |
Axle Configuration |
32CS
Available Options |
Other Options |
Available Options |
